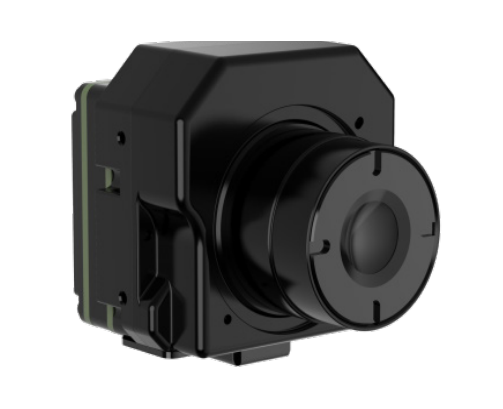

Features & Benefits:
- 400 x 300 uncooled VOx FPA
- Compact size, light weight, low energy
- Supports USB, CVBS
- Easy Integration
Thermal
- Detector Type: Uncooled VOx Microbolometer
- Effective Pixels: 400× 300
- Pixel Pitch: 12 μm
- Spectral Range: 8 μm–14 μm
- Thermal Sensitivity (NETD): ≤ 40mK@f/1.0
- SiTF: ≥10mV/K
- TEC: Built-in
- Full Frame Rate: 25 fps
Lens
- Focal Length: N/A
- Interface: N/A
- Iris: N/A
- Iris Control: N/A
- Angle of view: N/A
Temperature Monitoring
- Temperature Range:
- Low temperature mode: -20°C (-4°F) to +150°C (302°F)
- High temperature mode: 0°C (34°F) to +550°C (1022°F)
- Temperature Accuracy: Max (±2°C , ±2%)
- Operating temperature: -20°C (-4°F) to +60°C (140°F)
- Image Setting: Brightness/Sharpness/ROI/AGC/FFC/3D DNR
- Color Palettes: 18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)
- Image Algorithm: FPNC, SFFC, EE
Interface
- Communication: RS232, 115200Hz
- Digital: 2.5V LVDS@25fps; BT1120
- USB: Support
- Analog Communication: CVBS (PAL)
Power
- Power Supply: DC 5V
- Power Consumption (without TEC): 1.8W
- Power Consumption (with TEC): 1.8W + 1W
- Power Consumption: <1.8W
Environment
- Operating Condition: -40°C~+70°C
- Storage Conditions: -40°C~+85°C
- Vibration: 10 Hz~200Hz, Acceleration 10 m/s², three-axis, 10 times each
- Humidity: ≤95%
Physical Characteristics
- Dimensions: 44.40×44.40×55.02 mm
- Net Weight: 106.4 g
