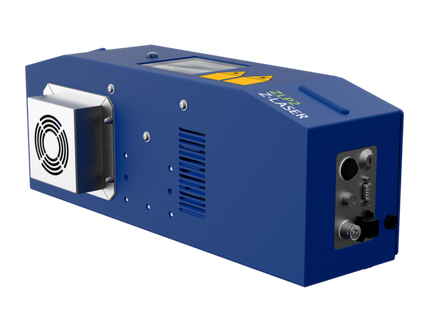

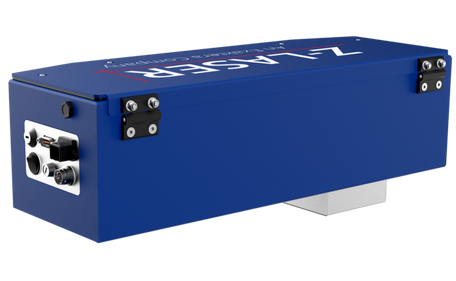

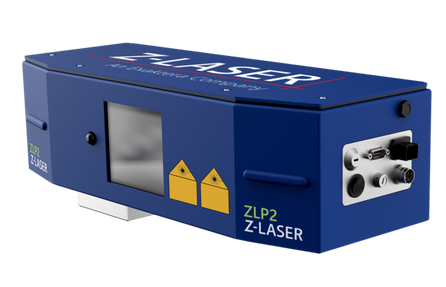

ZLP2 Laser Projector
With the ZLP2, the performance features of the ZLP family have been consistently advanced. For example, the laser projector features an unprecedented beam quality due to the use of fiber-coupled laser sources. With an accuracy of 0.25mm/m working distance, the laser projector is predestined for classic industries such as wood and stone processing as well as for cross-industry applications with composite materials.
Features & Benefits:
- Highly precise and stable laser projection
- Optimized for projection on 3D objects
- Excellent beam performance by the fiber-coupled laser source
- Large aperture (up to 80° x 80°) enables large working areas
- Data transmission via ethernet adapter
- Easy integration into multi projection systems
- Intuitive graphical user interface ZLP-Suite
- Advanced programming interface (API) for C++, C#, Python
- Client-/Server architecture
- PLC-Gateway (Siemens S7)
Specification & Models:
| Specification | Details |
|---|---|
| Output Power | 5 mW |
| Wavelength | 520 nm, 638 nm |
| Projection | 2D, 3D, CAD |
| Beam Angle | 76° x 76° |
| Application | Assembling, Mounting/Set-up |
| Technology | Diode laser |
| Supply Voltage | 24 VDC |
| Laser Class | 2M |
