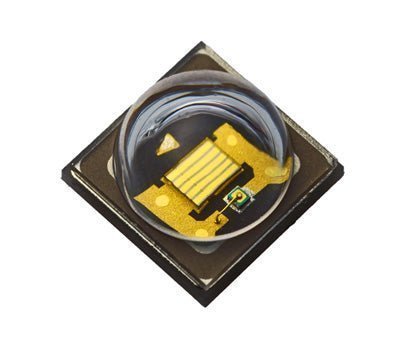

ZEUBE265-2BA Deep-UV LED (UVC) Peak wavelength 265nm 25mW
Wide distribution angle, high power type Deep-UV LED (UVC) Peak wavelength 265nm Outer dimension 3.5 x 3.5 x 2.24mm ( L x W x H )
Features & Benefits:
- Total power : 25mW (TYP.) @ IF = 440mA
- Operating temperature : -30 to +85 deg.
- High reliability hermetic sealing package for reducing influence of humidity and outgas
- Lead–free soldering compliant
- RoHS2 compliant
Specification & Models:
- Size (mm)L3.5xW3.5xH2.24
- Peak wavelength (nm)265
- Light output (mW)25
- Half intensity angle (deg.)120,120
- Continuous forward current (mA)440
- Forward voltage (V)7.0
