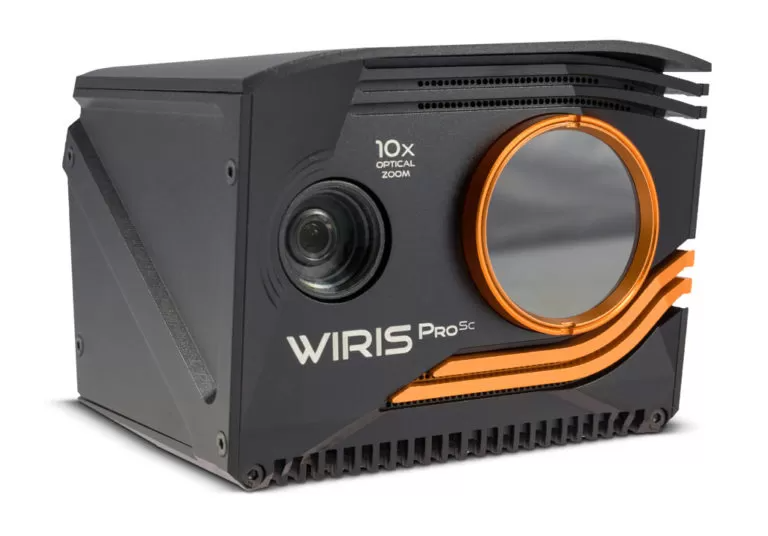

WIRIS PRO Sc – A camera for the most challenging applications

A Thermal Camera for the Most Demanding Applications

The WIRIS ProSc is a thermal imaging camera designed for the most demanding applications. Its precision is evident in the orthothermogram on the left, which is composed of 1500 separate thermograms, each acquired by the Workswell WIRIS ProSc and composed in Pix4Dmapper software. The orthothermogram maps an area of approximately 5 hectares (50,000 m²) and was taken by a drone during two separate flights, with a flight time of 50 minutes, from a height of 70 m.

The Workswel WIRIS ProSc is the only UAV thermal imaging camera that meets all the requirements of this extremely demanding application

• Highest thermal sensitivity on the market (< 30 mK)
• Very low temperature drift, even during long flights
• Very high thermogram homogeneity

Environmental Insight

Water and plant management influence the local microclimate. Draining and removing greenery over large expanses induces desert climates, especially around cities and fields. This cannot be resolved through purely technical solutions. In this image, you can clearly identify places where landscape drought and consequent loss of vegetation are emanating.

The naked hill on the right above the vineyard, impacted by intense soil erosion, warms its surroundings, and the effects of this heat reach into the vineyard. On the other hand, vegetation to the left of the vineyard has a cooling effect that penetrates the vineyard, which covers approximately 2 hectares.

Enhanced Land Management

We believe the Workswell WIRIS ProSc enhances land management. It allows for the localization, visualization, and reversal of local issues, even when considered irreversible manifestations of global processes. By facilitating local action, this camera opens paths towards improving vital natural systems.

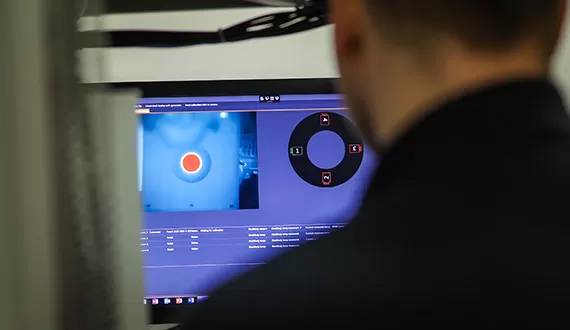

Calibration for Accuracy

Each WIRIS ProSc is precisely calibrated in our climatic chamber, ensuring accuracy when measuring various temperatures. We have achieved unmatched measurement accuracy in aerial thermography, with a precision of ±2°C or ±2% (±3.6°F).

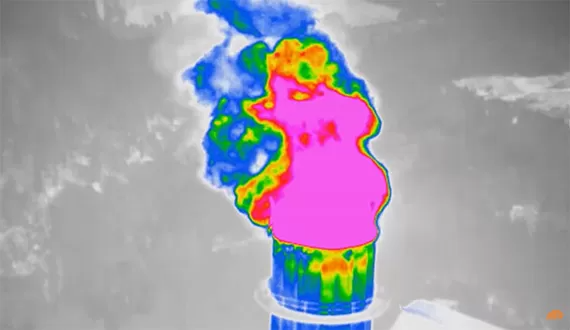

High Temperature Measurement

For non-standard applications, such as high-temperature measurements, the WIRIS ProSc thermal camera can measure temperatures of up to 1500°C with an external filter.

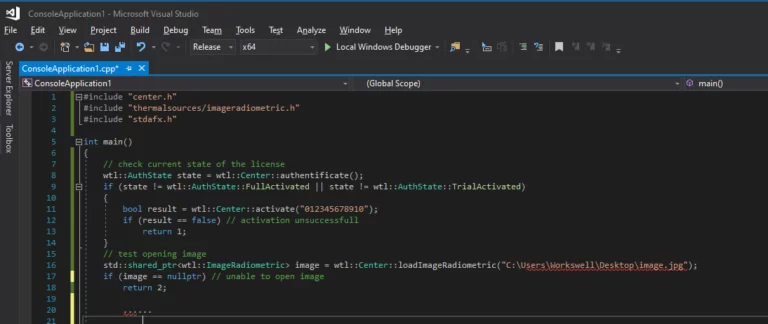

R&D Software and SDK Support

The Workswell WIRIS ProSc is designed for research and development, offering the CorePlayer SDK with a volume license for 5 users, allowing access to low-level functionalities for maximizing the camera’s potential.

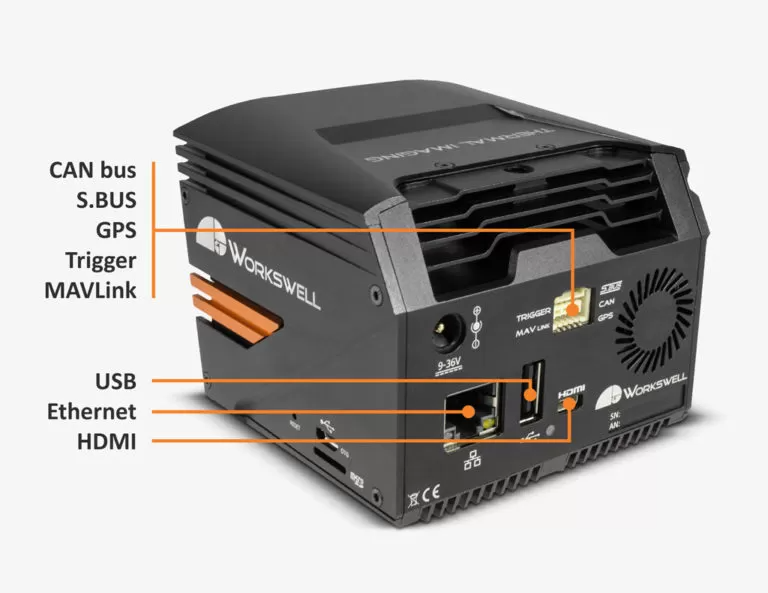

Multiple Interfaces

The Workswell WIRIS ProSc offers interfaces for a wide range of connections, including:

• S.BUS
• CAN bus (DJI M600 and A3 controller compatible)
• Ethernet (RJ 45 with RTPS streaming and control signals)
• MavLink
• GPS connection
• External trigger
• CANbus & UART serial communication

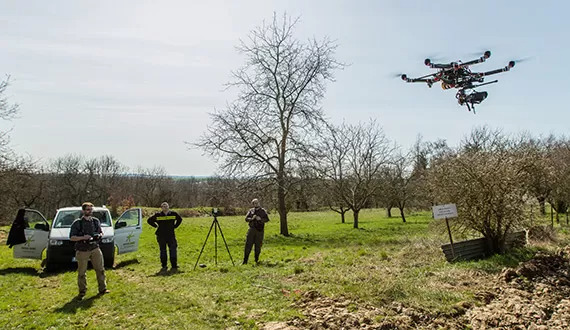

Compatible with Any Platform

Its interfaces make the WIRIS ProSc compatible with drones such as DJI M600 Pro, AceCore Zoe, VideoDrone, Flydeo, and Height Technologies.

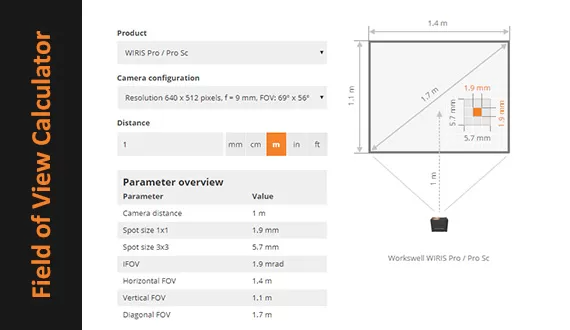

Interchangeable Lenses

The WIRIS ProSc thermal camera supports 18°, 32°, 45°, or 69° lenses, which are user-interchangeable at any time. Additional lenses can be supplied as accessories, and each lens is calibrated separately.

WIRIS OS – Maximize Full Potential

The WIRIS OS, developed over four years, allows users to maximize the full potential of the camera’s sensor and computing hardware, offering functionalities that other cameras without an OS cannot match.

Weight and Dimensions

The Workswell WIRIS ProSc weighs less than 450 g, making it ideal for drone use.

• WEIGHT: < 450 g
• DIMENSIONS: 83 x 85 x 68 mm
