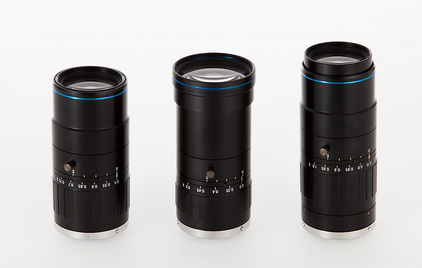

VS-TEV Series Telecentric Lens
With 1.1″ large format sensor support and a 3.45μm pixel resolution the VS-TEV series excels at delivering a clear high quality image. It’s three variable magnification ranges of 0.3x – 0.5x, 0.5x – 0.75x, 0.75x – 1x have you covered at every spectrum.
Features & Benefits:
- 1.1″ sensor support
- 3 models available
- 3.45μm resolution
- Variable Magnification
- Adjustable DOF
- High Telecentricity
- Variable iris allows for easy DOF and contrast balance adjustment
- C-Mount
Specification & Models:
| Model | Mag. | WD (mm) | NA |
|---|---|---|---|
| VS-TEV0305 | 0.3x – 0.5x | 125.8 – 221.5mm | 0.035 – 0.041 |
| VS-TEV05075 | 0.5x – 0.75x | 133.9 – 173.2mm | 0.050 – 0.055 |
| VS-TEV07510 | 0.75x – 1.0x | 114.0 – 133.9mm | 0.055 – 0.059 |
