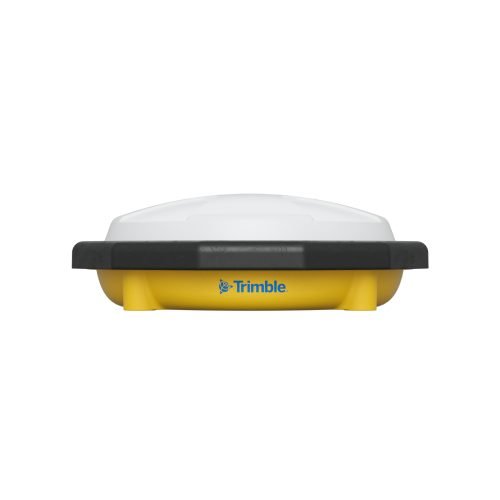

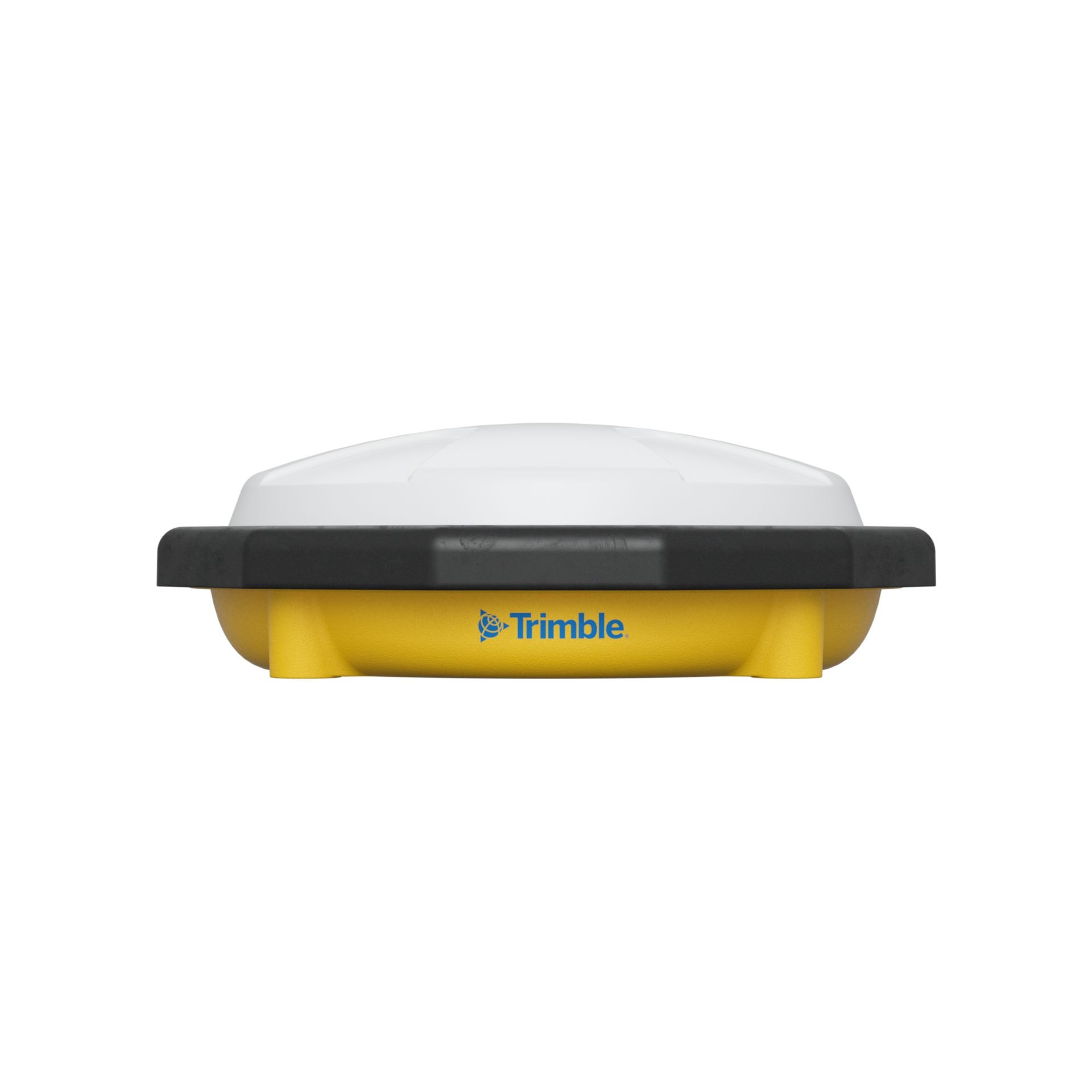

Trimble Zephyr 3 Rugged Antenna
Delivering millimeter level accuracy for high shock & vibration applications, the newly improved Trimble® Zephyr™ 3 Rugged antenna is smaller and lighter than its Zephyr 2 predecessor.
Comprehensive GNSS support
The Zephyr 3 Rugged antenna offers full support for current and near‑future GNSS signals including GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, OmniSTAR®, Trimble RTX® and SBAS.
Features of the Zephyr 3 Rugged
• Additional Iridium filtering above 1616 MHz allows antenna to be used as close as 20 m of Iridium transmitter
• Additional filtering below 1510 MHz allows for antenna placement closer to Japanese LTE cell tower
• Advanced LNA (low noise amplifier) to reduce interference by high power out-of-band transmitters
• 50 dB signal gain for reliable tracking in challenging environments and long cable runs

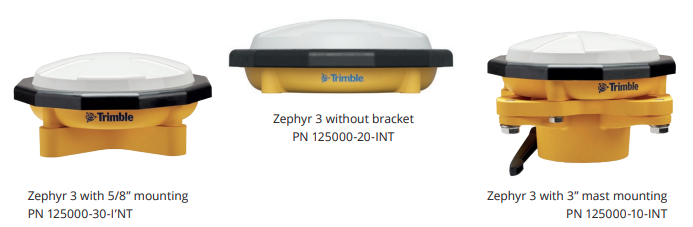

• Two product versions available for 5/8 11” thread and 3” mast mounting
Features & Benefits:
- Comprehensive GNSS support, including GPS Modernisation signals, GLONASS, BeiDou and Galileo
- Robust low-elevation satellite tracking
- Millimeter phase center repeatability
- Improved signal filtering and multipath rejection
- Additional Iridium and Japanese LTE filtering
- High signal gain (50 dB) for reliable tracking
- 75g Shock, suitable for applications in harsh environments
- Thread Mount Weight: 1.79kg / Size: 18.7cm (D) x 8.6cm (H)
- Mask Mount Weight: 2.19kg / Size: 21.9cm (D) x 12.5cm (H)
