Features & Benefits:

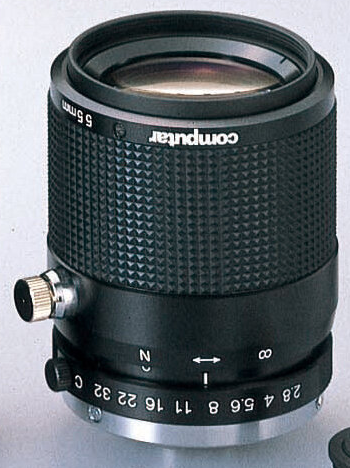

- WD140mm~Infinity. Suitable for use as a telephoto lens and macro lens [TEC-M55]
- Compact design, compatible with 5MP sensors [TEC-M55MPW]
- Suitable for 2/3″ 2MP sensor, WD65mm WD110mm [TEC-M MP（C)]
- Sensor Size 2/3″
- Resolution 5MP / 2MP / VGA
- Mount C
- Lens Type Monofocal
- Iris Manual / FIX
Specification & Models:
| Model name | Sensor Size | F-Number | Working Distance | Distortion | Weight |
|---|---|---|---|---|---|
| TEC-M55 | 2/3″ | 2.8 | 0.14m – Inf. | 0.6% (y=5.5) | 320g |
| TEC-M55MPW | 2/3″ | 3 | 0.139m – 1m | 0.52% – 0.6% (y=5.5) | 400g |
| TEC-M0565MP | 2/3″ | 9 | 0.0655m | -0.012% (TV Distortion) | 77g |
| TEC-M0565MPC | 2/3″ | 9 | 0.0655m | -0.012% (TV Distortion) | 80g |
| TEC-M0865MP | 2/3″ | 9.4 | 0.066m | 0.008% (TV Distortion) | 57g |
| TEC-M0865MPC | 2/3″ | 9.4 | 0.066m | 0.008% (TV Distortion) | 62g |
| TEC-M1065MP | 2/3″ | 9.8 | 0.0655m | -0.022% (TV Distortion) | 49g |
| TEC-M1065MPC | 2/3″ | 9.8 | 0.0655m | -0.022% (TV Distortion) | 54g |
| TEC-M2065MP | 2/3″ | 12.8 | 0.0654m | 0.020% (TV Distortion) | 49g |
| TEC-M2065MPC | 2/3″ | 12.8 | 0.0654m | 0.020% (TV Distortion) | 55g |
| TEC-M03110MP | 2/3″ | 6.5 | 0.111m | 0.026% (TV Distortion) | 160g |
| TEC-M03110MPC | 2/3″ | 6.5 | 0.111m | 0.026% (TV Distortion) | 166g |
| TEC-M05110MP | 2/3″ | 9.4 | 0.1118m | -0.009% (TV Distortion) | 128g |
| TEC-M05110MPC | 2/3″ | 9.4 | 0.1118m | -0.009% (TV Distortion) | 131g |
| TEC-M08110MP | 2/3″ | 10.2 | 0.111m | -0.027% (TV Distortion) | 103g |
| TEC-M08110MPC | 2/3″ | 10.2 | 0.111m | -0.027% (TV Distortion) | 106g |
| TEC-M10110MP | 2/3″ | 10.1 | 0.1115m | -0.003% (TV Distortion) | 105g |
| TEC-M10110MPC | 2/3″ | 10.1 | 0.1115m | -0.003% (TV Distortion) | 108g |
| TEC-M15110MP | 2/3″ | 11.5 | 0.1107m | 0.031% (TV Distortion) | 108g |
| TEC-M15110MPC | 2/3″ | 11.5 | 0.1107m | 0.031% (TV Distortion) | 110g |
| TEC-M20110MP | 2/3″ | 13 | 0.1109m | -0.019% (TV Distortion) | 113g |
| TEC-M20110MPC | 2/3″ | 13 | 0.1109m | -0.019% (TV Distortion) | 115g |
| TEC-M40110MP | 2/3″ | 21.9 | 0.1105m | -0.004% (TV Distortion) | 120g |
| TEC-M40110MPC | 2/3″ | 21.9 | 0.1105m | -0.004% (TV Distortion) | 121g |
| TEC-M4065MP | 2/3″ | 16.9 | 0.0653m | -0.003% (TV Distortion) | 83g |
| TEC-M4065MPC | 2/3″ | 16.9 | 0.0653m | -0.003% (TV Distortion) | 85g |
| TEC-M6065MP | 2/3″ | 25.5 | 0.064m | -0.026% (TV Distortion) | 98g |
| TEC-M6065MPC | 2/3″ | 25.5 | 0.064m | -0.026% (TV Distortion) | 100g |
| TEC-M30110MP | 2/3″ | 16 | 0.1114m | -0.012% (TV Distortion) | 160g |
| TEC-M30110MPC | 2/3″ | 16 | 0.1114m | -0.012% (TV Distortion) | 166g |
| TEC-M60110MP | 2/3″ | 39.6 | 0.11m | -0.015% (TV Distortion) | 101g |
| TEC-M60110MPC | 2/3″ | 39.6 | 0.11m | -0.015% (TV Distortion) | 103g |
