SVHAS21

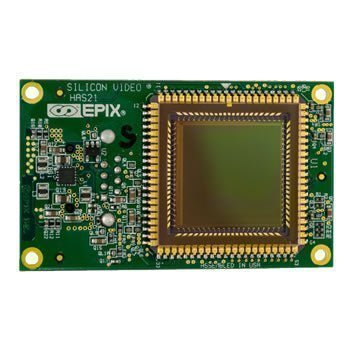

The HAS21 board camera uses a High Accuracy Star Tracker (HAS) Version 2 CMOS Active Pixel image sensor which provides 1024 pixel by 1024 line images with 12 bits per pixel at 9 frames per second.
This board camera is ideal for evaluating the HAS21 sensor for space imaging applications and is supported by PIXCI SI1, SI2, and SI4 frame grabbers for 1, 2, or 4 camera capture in one PCI Express bus slot.
XCAP software provides control for exposure, area of interest, frame rate, trigger selection, and pixel clock frequency.
Features & Benefits:
- 1024 × 1024
- 9.15 FPS
- 8, 12 bit
- Mono
- On-Semi NOIH2SM1000T-HHC (formerly On-Semi CYIH1SM1000AA-HHCS)
- Space Qualified Sensor
Specification & Models:
| Resolution | 25 MHz | 32.5 MHz | 40 MHz |
|---|---|---|---|
| 1024 × 1024 | 5.7 | 7.4 | 9.1 |
| 1024 × 768 | 7.6 | 9.9 | 12.2 |
| 800 × 800 | 9.3 | 12.1 | 14.8 |
| 800 × 600 | 12.3 | 16.1 | 19.7 |
| 640 × 640 | 14.3 | 18.6 | 22.9 |
| 640 × 480 | 19.2 | 24.7 | 30.5 |
| 320 × 320 | 53.8 | 69.8 | 85.9 |
| 320 × 240 | 71.7 | 92.9 | 114 |
| 1024 × 1024 | 123 | 156 | 197 |
| 120 × 120 | 319 | 412 | 507 |
| 120 × 90 | 424 | 546 | 667 |
| 64 × 64 | 909 | 1164 | 1432 |
| 64 × 46 | 1256 | 1599 | 1968 |
| 1024 × 219 | 452 | 583 | 711 |
| 128 × 237 | 878 | 1124 | 1370 |
| Specification | Value |
|---|---|
| Sensor | ON-Semi NOIH2SM1000T-HHC with BK7G18 radiation resistant optical glass (Formerly Cypress CYIH1SM1000AA-HHCS) |
| Full Resolution | 1024 × 1024 |
| Master Clock | 10 MHz |
| Frame Rate | 9 fps |
| ADC Resolution | 12-bit |
| Pixel Size | 18.0µm × 18.0µm |
| Shutter Type | Electronic Rolling Shutter |
| Dynamic Range | 69 dB |
| Spectral Range | 400 nm to 1000 nm |
| Operating Temperature | −0°C to +60°C |
| Dimensions | 2.4 in. by 1.4 in. PCB size |
| Other Features | Radiation Tolerant Sensor Tested to Space Qualified Device Standards, Region of Interest Windowing, On-chip Fixed Pattern Noise Correction |
