SV2KS
Stereo Camera Captures 10 bit images at 340 fps

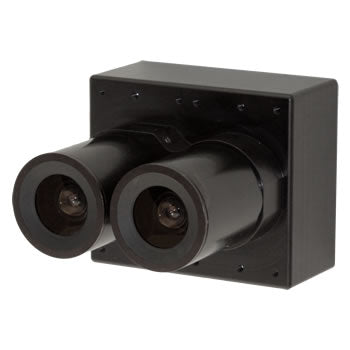

The SILICON VIDEO® 2KS stereo camera has two 2048 pixel by 1088 line global shutter, monochrome or color 5.5 micron pitch sensors on one inch centers. The camera case is 2.125 inches wide by 1.8 inches high by 1.3 inches deep and weighs 2 ounces. Available with up to 100 meters of optical cable for high speed, remote imaging.
Global shutter provides triggered exposures from 65 microseconds to over 100 seconds. Image capture can be performed at 8, 10, or 12 bits per pixel. Dark level and analog gain adjustments provide flexibility in image exposure adjustment. High dynamic range operation is available for images with a wide range of illumination. Contact ALRAD for more details.
Features & Benefits:
- Stereo
- 2048 × 1088
- 340 FPS
- 8, 10 or 12 bit
- Bayer or Mono
- CMOSIS CMV2000
- Compact Stereo Camera Head
Specification & Models:
| Optical Format | Image Sensor Pitch | Active Pixels | Full Well Charge | Sensitivity | Dark Noise | Operating Temperature | Camera Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|
| 2/3 inch | 5.5 microns | 2048H x 1088V | 13.5 Ke | 4.64 V/Lux s | 13e RMS | -30C to +70C | 2.125″W × 1.8″H × 1.3″D 53.975mm W × 45.72mm H × 33.02mm D |
2 ounces |
