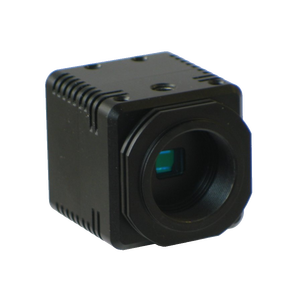

STC-HD93SDI – HD-SDI Output Color Camera
DVI/SDI CamerasHD-SDI Output Color Camera
Connectable to the monitor directly by versatile BNC connectors Suitable for the long distance image transmission enables a display of the crosshair and shadow masks by using the optional remote unit.
STC-HD93SDI has a 1.5 times higher sensitivity than its conventional type(STC-HD133SDI) and it leads to brighter images than ever a full High-Definition 1080P makes it possible to acquire higher resolution images.
Specification & Models:
| Resolution | Model No. | Frame Rate | Effective Pixels | Sensor Size | Cell Size (HxV, μm) | Imaging Area (HxVxD, mm) | Sensor | Lens Mount |
|---|---|---|---|---|---|---|---|---|
| HD 720P | STC-HD93SDI | 60fps | 1280 x 720 | 1/3″ | 4.08×4.08 | 2.9×5.2×6.0 | Monochrome | C-Mount |
| HD 720P | STC-HD93SDI-B | 60fps | 1280 x 720 | 1/3″ | 4.08×4.08 | 2.9×5.2×6.0 | Monochrome | C-Mount |
| HD 720P | STC-HD93SDI-CS | 60fps | 1280 x 720 | 1/3″ | 4.08×4.08 | 2.9×5.2×6.0 | Monochrome | CS-Mount |
| FHD 1080P | STC-HD203SDI | 60fps | 1920 x 1080 | 1/2.8″ | 2.8×2.8 | 3.0×5.4×6.2 | Color ICX445AQA | C-Mount |
| FHD 1080P | STC-HD203SDI-CS | 60fps | 1920 x 1080 | 1/2.8″ | 2.8×2.8 | 3.0×5.4×6.2 | Color IMX136 | CS-Mount |
