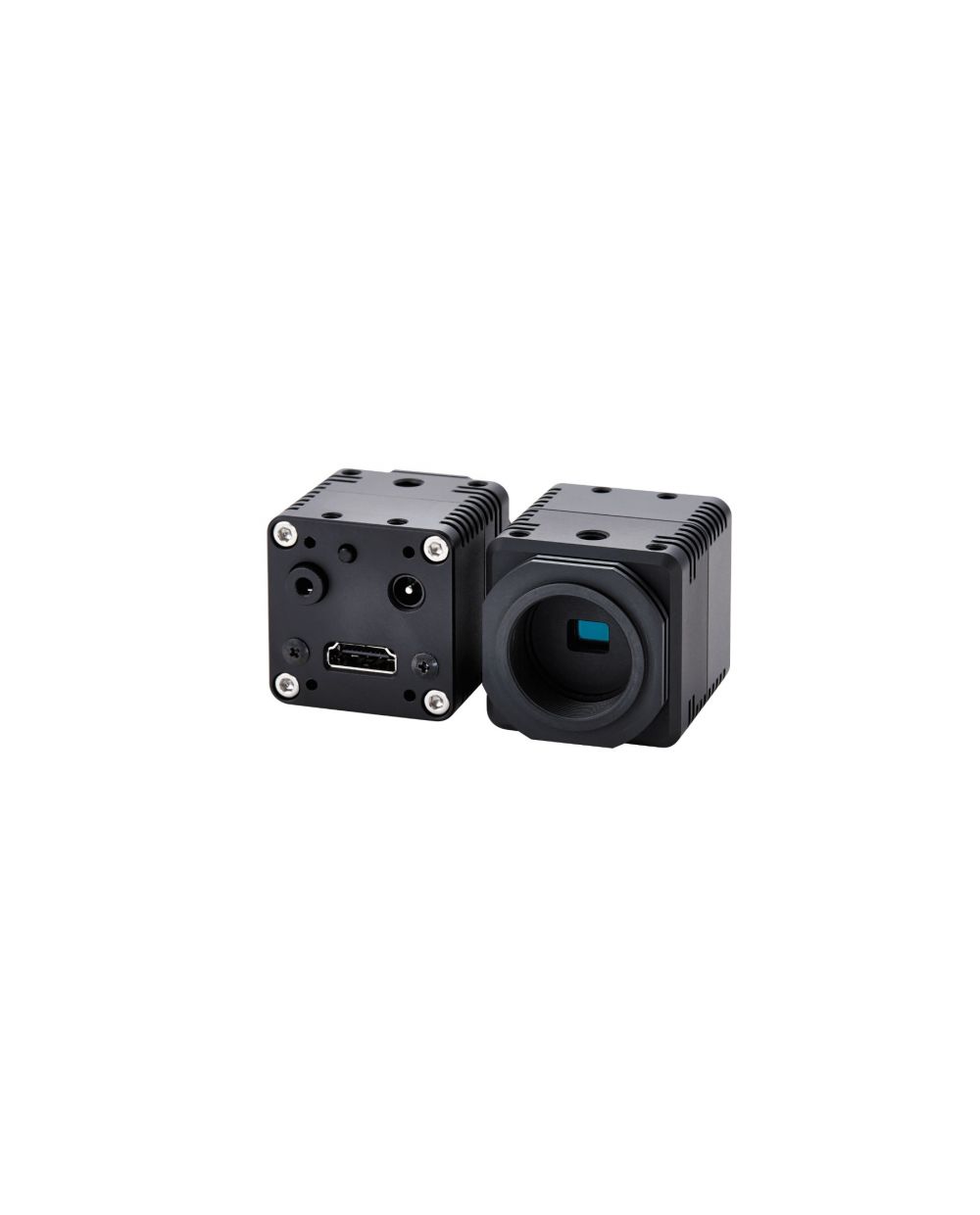

STC-HD93DV – HD DVI Output Colour Camera
Connects to the monitor directly using HDMI connector enables observing system without PC enables a display of the crosshair and shadow masks by using the optional remote unit.
STC-HD93DV has a 1.5 times higher sensitivity than its conventional type(STC-HD133DV) and it leads to brighter images than ever.
Release of the full High-Definition 1080P makes the acquisition of higher resolution images available.
Specification & Models:
| Resolution | Model No. | Frame Rate | Effective Pixels | Sensor Size | Cell Size (HxV, μm) | Imaging Area (HxVxD, mm) | Sensor | Lens Mount |
|---|---|---|---|---|---|---|---|---|
| HD 720P | STC-HD93DV | 60fps | 1280 × 720 | 1/3″ | 4.08×4.08 | 2.9×5.2×6.0 | Monochrome | C-Mount |
| HD 720P | STC-HD93DV-B | 60fps | 1280 × 720 | 1/3″ | 4.08×4.08 | 2.9×5.2×6.0 | Monochrome | C-Mount |
| HD 720P | STC-HD93DV-CS | 60fps | 1280 × 720 | 1/3″ | 4.08×4.08 | 2.9×5.2×6.0 | Monochrome | CS-Mount |
| FHD 1080P | STC-HD203DV | 60fps | 1920 × 1080 | 1/2.8″ | 2.8×2.8 | 3.0×5.4×6.2 | Color ICX692AQA | C-Mount |
| FHD 1080P | STC-HD203DV-CS | 60fps | 1920 × 1080 | 1/2.8″ | 2.8×2.8 | 3.0×5.4×6.2 | Color IMX136 | CS-Mount |
