CMT-23X10W110C-ID

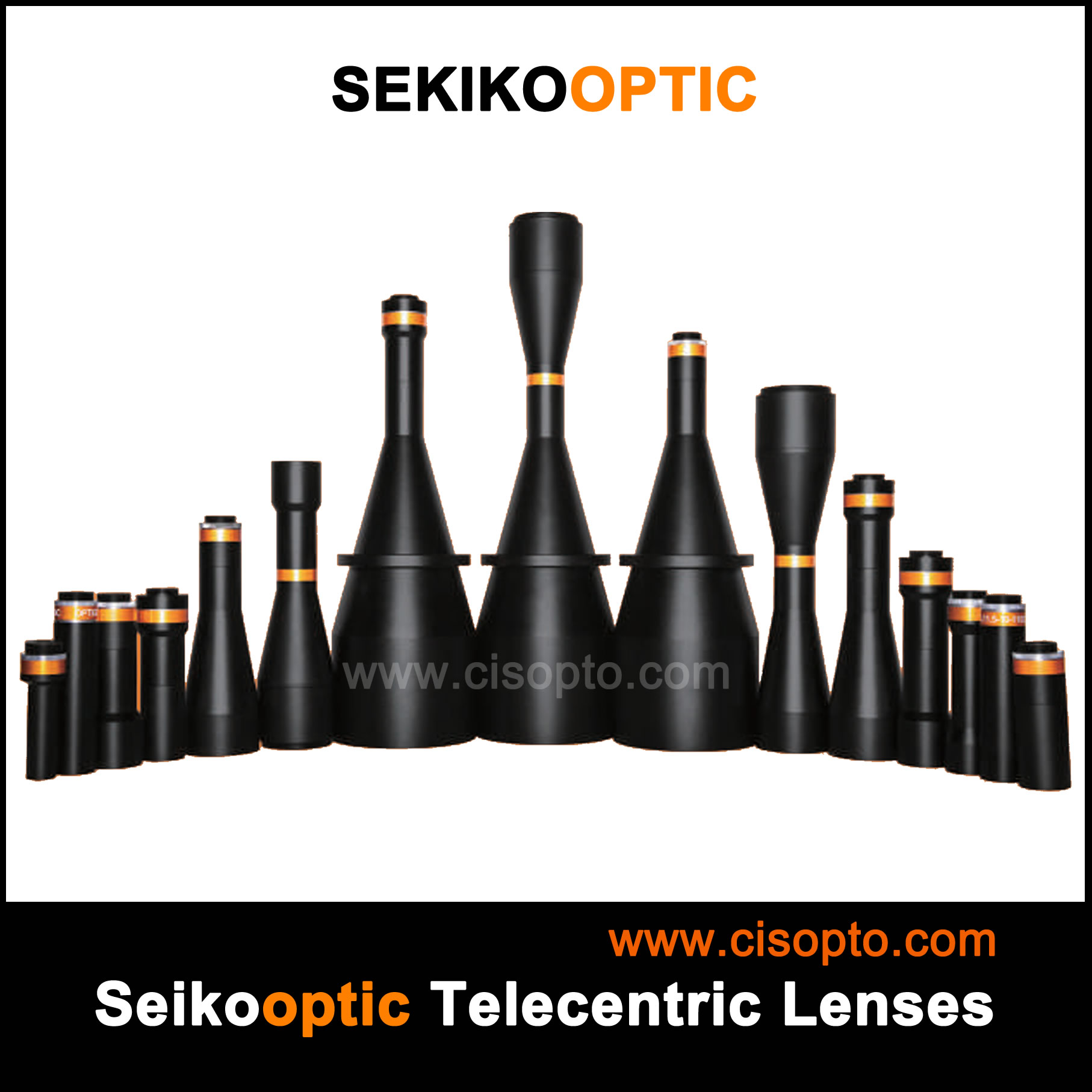

At present, telecentric lenses are widely used for inspection and measurement in the field of R&D, medical, security, measurement, automated inspection, etc. CMT-W110 series telecentric lenses have two types of products, lenses with high resolution and lenses with deep DOF, satisfying different technical requirements. The lens mount is standard C-mount and the working distance remains at 110mm under different magnifications.
Features & Benefits:
- Various optical magnifications, satisfying different requirements on field of view
- Options between high resolution and deep DOF are available, satisfying different technical requirements
- WD=110mm
- Distortion: less than0.05%, telecentricity: less than0.1Degree
- Telecentric design, deep DOF and high resolution
- Multi-layer coating, high transmittance
- High cost performance, suitable for systems used for batch testing and inspection
- Customized aperture is available
| Type | Lenses with High Resolution | Lenses with Deep DOF |
|---|---|---|
| Model | CMT-23X10W110C-I | CMT-23X10W110C-ID |
| Max. FOV (mm) | 11.50 | 11.50 |
| Magnification | 1.0 | 1.0 |
| Working Distance (mm) | 65 | 65 |
| 2/3" H | 9.2 | 9.2 |
| V | 6.9 | 6.90 |
| D | 11.5 | 11.50 |
| Effective F number | 11 | 16 |
| Object Side Resolution (um) | 7.381 | 10.736 |
| DOF (mm) | 0.88 | 1.28 |
| Measured Telecentricity (Degree) | <0.1 | <0.1 |
| Measured Distortion (%) | <0.05 | <0.05 |
| Lens Mount | C | C |
