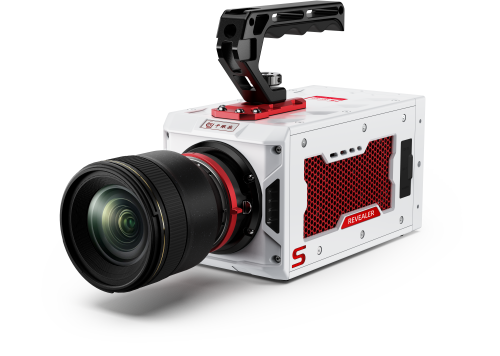

S-Series High-Speed Camera
S1310M / S1310C
S1315M / S1315C
S Ultra-High-Speed Series – high-end and high-quality cameras for high-precision scientific research, aerospace and high-speed industrial fields.
With top performance parameters, special features and powerful data acquisition, storage and processing capabilities.
Features & Benefits:
- ROI acquisition window setting, support resolution, frame rate linkage adjustment
- Supports auto exposure, EDR secondary exposure
- Supports internal and external synchronization
- Supports rising edge, falling edge, low level, high level and other external signal triggering
- Supports automatic triggering of image changes within a 10×10 pixel area
- Standard shutter release cable to control shooting and saving, one-touch recording function
- Automatic white balance, dark field correction, intelligent denoising, Gamma correction, colour optimization module
- SDI video output supports real-time screen preview and slow playback in the export preview state (select settings)
- Supports PIV cross-frame exposure for non-contact measurement of PIV, PTV, etc.
Applications:
- Hopkinson’s rod
- High-speed water jets, fluid dynamics
- High voltage discharge
- Precision time measurement
- Non-contact measurement of high-frequency vibration displacement, etc
Specification & Models:
| Model | S1310 | S1315 |
|---|---|---|
| Resolution | 1280 x 1024 | 1280 x 1024 |
| Bit Depth | 10Bit | 10Bit |
| Frame Rate | Resolution / FPS | Resolution / FPS |
| 1280 x 1024 / 10,000 fps | 1280 x 1024 / 15,000 fps | |
| 1280 x 720 / 14,500 fps | 1280 x 720 / 21,600 fps | |
| 1280 x 512 / 20,000 fps | 1280 x 512 / 30,000 fps | |
| 1280 x 8 / 800,000 fps | 1280 x 8 / 1,060,000 fps | |
| RAM Storage | 192GB | 192GB |
| SSD Storage | 1TB/2TB/10TB/20TB (optional) | 1TB/2TB/10TB/20TB (optional) |
| USB Interface | USB 3.0 | USB 3.0 |
| Min. Exposure Time | 100ns | 100ns |
| Shutter | Global Shutter | Global Shutter |
| Colour | Mono S1310M/Colour S1310C | Mono S1315M/Colour S1315C |
| ROI | Support | Support |
| Auto Exposure | Support | Support |
| IRIG-B | Support | Support |
| Ethernet | 1Gigabit + 10GbE Dual Interface | 1Gigabit + 10GbE Dual Interface |
| Video Output | SDI | SDI |
| Size (without lens) | 110 x 110 x 205mm | 110 x 110 x 205mm |
| Weight | ≤ 3800g | ≤ 3800g |
