PortaSpec Series X – Multi-Element Sequential Analysis

PortaSpec® 2501 Series X is capable of performing multi-element sequential analysis in the range of Ti to U and is ideal for measuring coating weights of both chrome and titanium pretreatment.

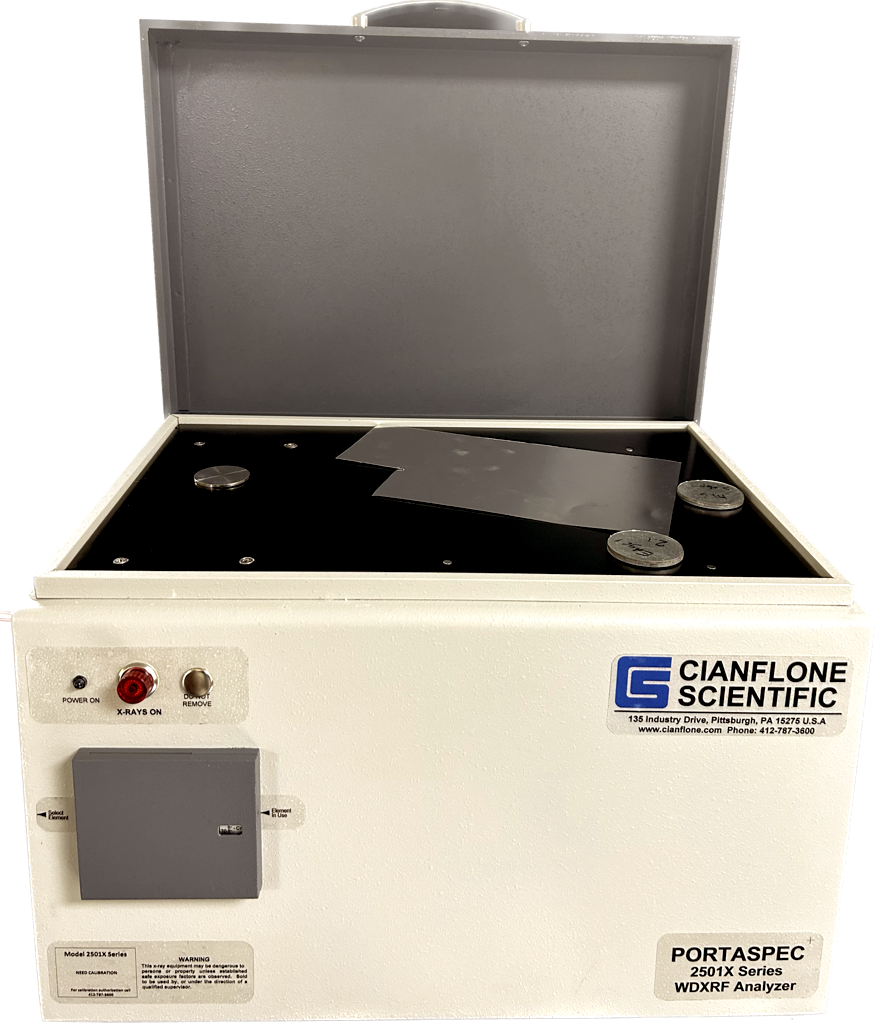

Cianflone’s PortaSpec 2501 Series X is similar to the Model 2501 XBT. It contains a rotating goniometer that allows the user to analyze up to five elements, preset sequentially one at a time. Its elemental range is from element #22 titanium to element #92 uranium. With the new sample tray configuration, it allows you to measure a larger range of sample sizes with the same high-quality standards you presently experience from your PortaSpec.

Other benchtop PortaSpec® versions available are Fixed Single Element (FSE) and Multi-Element Sequential (MES) analysis

Software

PortaSpec® PCS Software—a Windows®-based application that provides excellent records of prior analyses, improves productivity and simplifies analysis.
Designed for multiple industries, including:
- tubing and bar stock
- mining and minerals
- petroleum
- high– and low–alloy steel
- scrap metals
- glass
- synthetic and natural fibers
- building materials
- can
- chemical research
- alloy research
- automotive
- nuclear testing

Fixed Single Element (FSE)

FSE configuration provides a value-engineered solution that is easy on the budget while maintaining the same precision as more expensive units.
Performs at the same high level of precision and provides accurate results targeted to single element analysis.

Dual Element (DE)

Dual Analysis is a good solution for customers targeting two known elements.
Provides accurate and reliable results that PortaSpec® products are known for worldwide.

Multi-Element Sequential (MES)

Most versatile and flexible of the PortaSpec® family of WDXRF analyzers.
Capable of performing multi-element sequential analysis in the range of Titanium to Uranium.
Ideal for measuring coating weights of both chrome and titanium pretreatment.
Allows transition from one element to other elements at the touch of a button.

Included Items

Electric Water Coolant and Circulator
Windows®-based Notebook Computer
PC Interface and Preinstalled Software
Software training and upgrades for up to a year included with your PortaSpec® purchase.

Specifications

Bragg Angle Range: 13 to 98 degrees; Two Theta
Analyzing Crystal: Lithium Fluoride (200)
Element Range Kα: 22-47 (Ti to Ag)
Element Range Lα: 56-92 (Ba to U)
Collimators:
- 20 mil Divergent (Source)
- 10 mil Receiving (Detector)
X-ray Source: X-Ray Tube, Tungsten Target, Beryllium Window
X-ray Tube Voltage: 10, 20, or 30 kV Constant Potential
X-ray Tube Voltage Regulation: plus/minus 1% for plus/minus 10% line voltage variation
X-ray Tube Current: 0 to 5 mA – Adjustable
Detector Tube: Sealed Proportional
Detector Supply: 2700 VDC Max. (Adjustable)
Digital Scaler and Timer-Integrated:
- Counting Range: 1 to 999,999
- Timer Range: 1 to 990 seconds
Lamps: X-Ray On
Voltage Requirements:
- 115 Volts AC, 50 or 60 Hertz
- 230 Volts AC, 50 or 60 Hertz
- Single Phase, 300 watts
- Line Regulation Required: ± 5%
