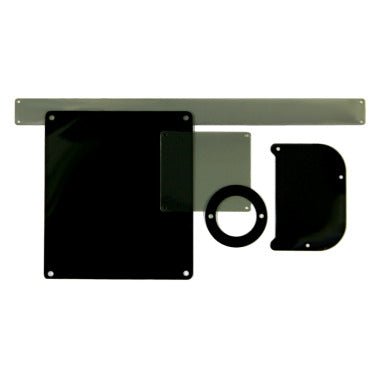

Polarizing Film

Reduces glare from light reflected off of specular surfaces
When used in pairs, placing one piece over another and rotating one against the other, a “light valve” or variable neutral density filter is created.
Check stress patterns in transparent glass and plastic
Best results are achieved when polarizing film is used over the light source in conjunction with a polarizing filter over the camera lens
Can be cut, drilled and formed to fit almost any type of lighting equipment
Maximum usable width is 16.5 inches (420mm)

Polarizing Film

PS Series: Visible Linear Polarizing Film

Compatible MidOpt Polarizing Filter: PR032 Linear Polarizer
Useful Range: 400-700 nm
Part Numbers:
- PS007 High Contrast Linear Polarizing Film
  - Thickness: .007″ (0.18mm)
  - Contrast Ratio: 3000:1
- PSA007 High Contrast Linear Polarizing Film Self Adhesive
  - Thickness: .007″ (0.18mm)
  - Contrast Ratio: 1500:1
- PS010 High Contrast Linear Polarizing Film
  - Thickness: .010″ (0.25mm)
  - Contrast Ratio: 3000:1
- PS030 Ultra High Contrast Linear Polarizing Film
  - Thickness: .030″ (0.76mm)
  - Contrast Ratio: 7000:1

HT Series: High Temperature Visible Linear Polarizing Film

Useful Range: 400-700 nm
Part Numbers:
- HT025 High Temperature Linear Polarizing Film
  - Temperature Rating: 100°C x 240 hours & 90°C x 1000 hours
  - Thickness: .025″ (0.64mm)
  - Contrast Ratio: 5000:1
- HT008 High Temperature Linear Polarizing Film
  - Temperature Rating: 115°C x 240 hours
  - Thickness: .008″ (0.2mm)
  - Contrast Ratio: 10,000:1
- HTA008 High Temperature Linear Polarizing Film Self Adhesive
  - Temperature Rating: 115°C x 240 hours
  - Thickness: .008″ (0.2mm)
  - Contrast Ratio: 10,000:1

PG Series: Visible Linear Glass Polarizing Sheet

Compatible MidOpt Polarizing Filter: PR120 Ultra High Contrast Linear Polarizer
Useful Range: 400-700nm
Part Number:
- PG120 High Temperature Ultra High Contrast Glass Linear Polarizing Sheet
  - Temperature Rating: 115°C x 240 hours
  - Thickness: .118″ (3mm)
  - Contrast Ratio: 10,000:1
  - Surface Quality: 80/50

Pi Series: NIR Linear Polarizing Film

Compatible MidOpt Polarizing Filters:
- Pi031 NIR/Vis Linear Polarizer, High Extinction
- Pi035 NIR/Vis Linear Polarizer, High Transmission
Useful Range: 700-2000nm
Part Number:
- Pi005 NIR High Contrast Linear Polarizing Film
  - Thickness: .007″ (0.18mm)
  - Contrast Ratio: 1000:1

PC Series: Circular Polarizing Film

Compatible MidOpt Polarizing Filter: PC052 Circular Polarizer
Useful Range: 400-700 nm
Part Numbers:
- PCL Left-Handed Circular Polarizer
  - Thickness: .010″ (0.25mm)
- PCR Right-Handed Circular Polarizer
  - Thickness: .010″ (0.25mm)
