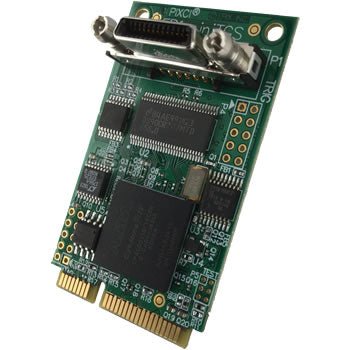

PIXCI EB1miniTGS Mini PCI Express x1 Base Camera Link Test Generator
Smallest base camera link frame generator plugs into a mini PCI express card slot. Generates base camera link digital video from test patterns, captured video, or live video with sustained rates of 200 megabytes per second. A very flexible cable allows for easy mounting of the MDR or SDR connector in a small embedded chassis. Includes software to generate, view, and display images and image sequences.
Features & Benefits:
- Plugs into full length mini PCIe slot
- 2.5 gigabit per second burst transfer rate
- 200 megabytes per second sustained transfer rate
- SDR camera link connector
- Available with No SDR connector for custom cables
- Image data DMA transferred from host memory
- 64 bit memory addressing for extended display
Specification & Models:
- 1.5 volts at 200 milliamps
- 10 pin header for trigger, strobe, frame in/out, two ttl in/two ttl out
- 3.3 volt LVTTL signal levels on header
- 2.0 inches (50.95mm) by 1.18 inches (30mm)
- 1.4 oz, 41 grams
- 3.3 volts at 150 milliamps
- CE, ROHS Compliant
- Generates a camera link pixel clock from 20 to 85 MHz
- Made in U.S.A.
