Features & Benefits:

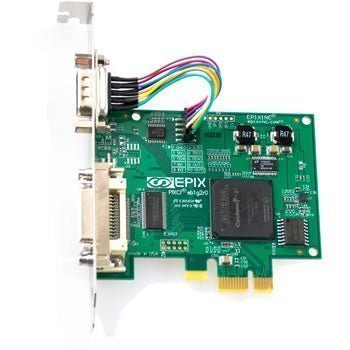

- PCIe x1 Gen 2 low-profile desktop frame grabber
- Operates in any PCI Express slot
- 5 gigabit per second burst transfer rate
- 409 megabytes per second sustained transfer rate
- One 26-pin MDR Camera Link connector
- Image data DMA transferred to motherboard memory
- 64-bit memory addressing
Specification & Models:
| Category | Details |
|---|---|
| SIGNAL INPUT & OUTPUT | EIA RS-644 (LVDS) Drivers & Receivers support pixel clock frequencies up to 85 MHz. |
| PERFORMANCE |
Supports the camera’s maximum:
|
| CONNECTIONS |
One 26-pin 3M MDR Camera Link connector for Base. 9-pin connector for Trigger, Frame Enable, Strobe, and General Purpose I/O. Camera Link cables available. |
| DATA TRANSFERS | Supports cameras with data output rates up to 409 MBytes/second. (Performance may vary depending on computer system capabilities.) 64-bit memory addressing. |
| BUS REQUIREMENTS | PCI Express x1 Gen 2 or better slot. Operates in PCI Express x16, x8, x4, or x1 slot. |
| DIMENSIONS | 8.38 cm long by 6.88 cm high (3.30″ long x 2.71″ high). |
| CERTIFICATIONS | CE Compliant ROHS Compliant |
| EPIX SOFTWARE SUPPORT |
Supported by XCAP-Lite (no charge with board purchase), XCAP-Ltd, XCAP-Std, XCLIB, and XCLIBIPL. Compatible with 32-bit & 64-bit Windows 10, 8, 7, Vista, XP, 2000, LINUX, and 32-bit DOS. Also TWAIN and Image-Pro Compatible. |
Capture
- From a Base Camera Link camera
- From line scan or area scan cameras
- From monochrome or color cameras
- Individual lines or frames
- Continuous video
- Triggered image sequences
Trigger and I/O
- Camera exposure and asynchronous reset control
- Trigger and frame enable inputs
- Strobe output
- General purpose inputs and outputs
Options
- Standard or low-profile bracket available
- Optional standard height bracket with Dsub for trigger,etc.
Specifications
- 12 V @ 190 mA, 3.3 V @ 130 mA
- Average power consumption: 2.709 Watts
- 8.38 cm long, 6.88 cm high, 3.30” long by 2.71” high
- 48 grams, 1.7 ounces
- 0 to 70 degrees Celsius operation
- CE, FCC, & ROHS Compliant
- Accepts camera pixel clocks from 25 to 85 MHz
Software
- XCAP-Lite image capture, display, and save program included with frame grabber purchase
- XCAP-LTD captures video to computer memory and more..
- XCAP-STD streams video to disk and performs image processing and more..
- PIXCI Selection Guide lists cameras supported with dedicated Capture & Adjust dialogs
- XCAP supports all camera link cameras connected to PIXCI® frame grabbers
- XCLIB programmer libraries for frame grabber and camera control
- PXIPL image processing, measurement, and analysis libraries
- Windows & Linux, 32 & 64-bit
- TWAIN compatible
- 3rd Party software solutions also available.
