Features & Benefits:

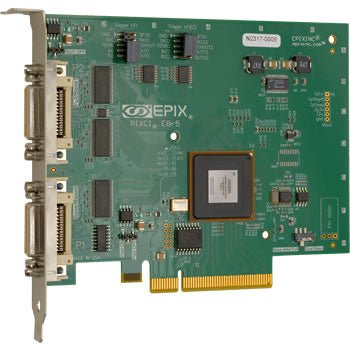

- PCIe x8 frame grabber
- Operates in PCI express bus x16 or x8 slot
- 20 gigabit per second burst DMA transfer rate
- 850 megabytes per second sustained transfer rate
- Power over Camera Link selectable
- Two 26-pin MDR Camera Link connectors
- 64-bit memory addressing
Specification & Models:
| Category | Details |
|---|---|
| SIGNAL INPUT & OUTPUT | EIA RS-644 (LVDS) Drivers & Receivers support pixel clock frequencies up to 85 MHz. |
| PERFORMANCE (Camera Link) | Supports the camera’s maximum: Horizontal Resolution, Vertical Resolution, Frame Rate, Bit Depth. |
| CONNECTIONS |
Two 26-pin 3M MDR Camera Link connectors for Full, Medium, and Base. 10-pin header for Trigger, Frame Enable, and Strobe. 10-pin header for General Purpose Inputs and Outputs. |
| BUS REQUIREMENTS | PCI Express x8 Bus slot. Operates in PCI Express Bus x16 or x8 slot. |
| POWER REQUIREMENTS |
12 V @ 120 mA 3.3 V @ 720 mA Total 3.816 Watts |
| DIMENSIONS | 13.08 cm long by 10.55 cm high (5.15″ long x 4.153″ high). |
| CERTIFICATIONS | CE, FCC, & ROHS Compliant |
| EPIX SOFTWARE SUPPORT |
Supported by XCAP-Lite (no charge with board purchase), XCAP-Ltd, XCAP-Std, XCLIB, and XCLIBIPL. Compatible with 32-bit & 64-bit Windows 10, 8, 7, Vista, XP, 2000, LINUX, and 32-bit DOS. Also TWAIN and Image-Pro Compatible. |
Image Capture
- Base, medium, full, or 80-bit camera
- Two base cameras
- Line scan or area scan cameras
- Monochrome or color cameras
- Individual lines or frames
- Triggered image sequence
Trigger, Strobe, and I/O Signals
- Camera exposure and asynchronous reset control
- Trigger and frame enable inputs
- Strobe output
- General purpose inputs and outputs
Key Specifications
- 12 volts @ 120 mA, 3.3 volts @ 720 mA
- 13.1 cm long, 10.6 cm high, 5.15″ long, 4.15″ high
- 102 grams, 3.6 ounces
- 0 to 70 degrees Celsius operation
- CE, FCC, ROHS compliant
- Camera pixel clock frequencies from 20 to 85 MHz
- Made in U.S.A.
Software
- XCAP-Lite image capture, display, and save program included with frame grabber purchase
- XCAP-LTD captures video to computer memory and more..
- XCAP-STD streams video to disk and performs image processing and more..
- PIXCI Selection Guide lists cameras supported with dedicated Capture & Adjust dialogs
- XCAP supports all camera link cameras connected to PIXCI® frame grabbers
- XCLIB programmer libraries for frame grabber and camera control
- PXIPL image processing, measurement, and analysis libraries
- Windows & Linux, 32 & 64-bit
- TWAIN compatible
