Features & Benefits:

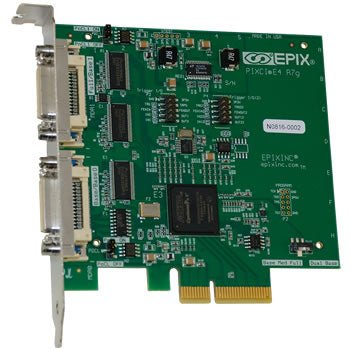

- PCIe x4 frame grabber
- Use in PCI Express Bus x16, x8, or x4 slot
- 10 gigabit per second burst DMA transfer rate
- 700 megabytes per second sustained transfer rate
- Power over Camera Link selectable
- Two 26-pin MDR Camera Link connectors
- 64-bit memory addressing
Specification & Models:
| Category | Details |
|---|---|
| SIGNAL INPUT & OUTPUT | EIA RS-644 (LVDS) Drivers & Receivers support pixel clock frequencies up to 85 MHz. |
| PERFORMANCE |
Supports the camera’s maximum:
|
| CONNECTIONS |
Two 26-pin 3M MDR Camera Link connectors for Full, Medium, and Base. 10-pin header for Trigger, Frame Enable, and Strobe. 10-pin header for General Purpose I/O. Camera Link cables available. |
| DATA TRANSFERS | Supports cameras with data output rates up to 700 MBytes/second. 64-bit memory addressing. |
| BUS REQUIREMENTS | x4 PCI Express Bus slot. Operates in x16, x8, or x4 PCI Express Bus slot. |
| POWER REQUIREMENTS |
Average: 2705.882 mA Minimum: 2500.000 mA Maximum: 2930.000 mA |
| DIMENSIONS | 13.6 cm long by 10.5 cm high (5.34″ long x 4.13″ high). |
| CERTIFICATIONS | CE Compliant ROHS Compliant |
| EPIX SOFTWARE SUPPORT |
Supported by XCAP-Lite (no charge with board purchase), XCAP-Ltd, XCAP-Std, XCLIB, and XCLIBIPL. Compatible with 32-bit & 64-bit Windows 10, 8, 7, Vista, XP, 2000, LINUX, and 32-bit DOS. Also TWAIN and Image-Pro Compatible. |
Image Capture
- One base, medium, full, or 80-bit camera
- Two base cameras
- Line scan or area scan cameras
- Monochrome or color cameras
- To disk or memory
Trigger, Strobe, and I/O Signals
- Camera exposure and asynchronous reset control
- Trigger and frame enable inputs
- Strobe output
- General purpose inputs and outputs
Specifications
- 12 volts @ 120 mA, 3.3 volts @ 720 mA
- 13.1 cm long, 10.6 cm high, 5.15″ long, 4.15″ high
- 0 to 70 degrees Celsius operation
- 99 grams, 3.49 ounces
- CE, FCC, ROHS compliant
- Camera pixel clock frequencies from 20 to 85 MHz
- Made in U.S.A.
Software
- XCAP-Lite image capture, display, and save program included with frame grabber purchase
- XCAP-LTD captures video to computer memory and more..
- XCAP-STD streams video to disk and performs image processing and more..
- PIXCI Selection Guide lists cameras supported with dedicated Capture & Adjust dialogs
- XCAP supports all camera link cameras connected to PIXCI® frame grabbers
- XCLIB programmer libraries for frame grabber and camera control
- PXIPL image processing, measurement, and analysis libraries
- Windows & Linux, 32 & 64-bit
- TWAIN compatible
- 3rd Party software solutions also available.
