NSI1500EVB- Evaluation kit for the NSI1000 MCU
Integrated with Newsight’s eTOFTM (enhanced-time-of-flight technology), supported by a windows-based demo tool, to enable the NSI1000 configuration and operation.

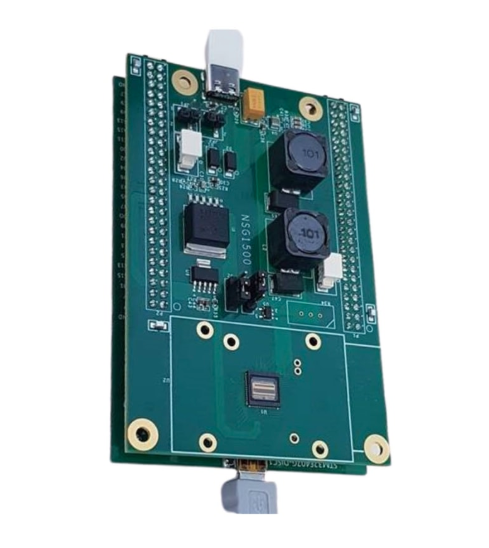

The NSI1500EVB is the evaluation kit of the NSI1000 sensor. The kit includes the NSI1500 evaluation board, adaptor with STM32F4 board, and the demo tool software.
It also includes a user manual for the kit and documentation for the NSI1000 and the MCU. The kit includes configuration files for different scenarios. Newsight will provide a special config file if needed upon request. It is designed to help our customers test and evaluate the NSI1000 performance and capabilities and to take full advantage of it for their applications.
Features & Benefits:
- Different applications testing options like Triangulation or Multi Triangulation and peak detection, eTOF and accumulation, camera/scanner, auto exposure, Multisets.
- Energy bar and camera.
- Different applications testing options like Triangulation or Multi Triangulation and peak detection, eTOF and accumulation, camera/scanner, auto exposure, Multisets.
- MCU- STM32F407VGT6 microcontroller featuring 32-bit ARM® Cortex®-M4 with FPU core, 1-Mbyte Flash memory, 192-Kbyte RAM in an LQFP100 package.
- USB OTG FS with micro-AB connector.
- Board power supply: through a USB bus or from an external 5 V supply voltage. External application power supply: 3 V and 5 V.
- Optional NSI1000 socket.
