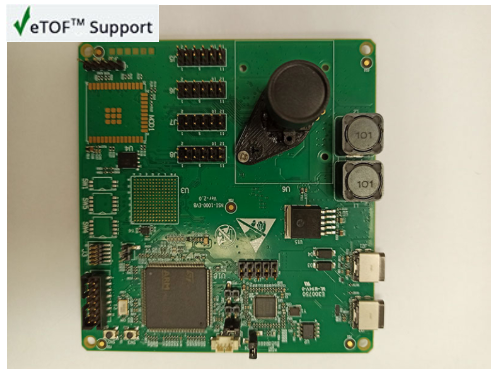

NSI1000EVB With MCU
Fully controled by Newsight’s windows-based demo tool, to enable the NSI1000 configuration and operation. With deferent configuration files for different scenarios.
Features & Benefits:
- NSI1000 sensor.
- Micro controller STM32F469ZIT6
- Communication support: FTDI FT600 – support USB 3.0 and USB 2.0 with c-type connection.
- ESP32-WROOM-32D supports Bluetooth and Wi-Fi.
- USB C-type connector for optional 5v power in.
- Lenses holder.
- CCOM Electronics Technology 25mm lens, optional CS/M12 mount.
- On board connector for a laser module, 1mW-5mW, 3.3-5VDC, 650nm-850nm.
- Demo tool software and configuration files.
- NSI1000 documentation and NSI1000EVB kit user manual
- FT600 chip, supports USB 3.0 super speed (5Gbps).
- ST microelectronics MCU based on the ARM® Cortex®-M4 CPU with FPU, ART Accelerator™.
- Up to 2MB flash memory and up to 384 + 4 KB of SRAM.
