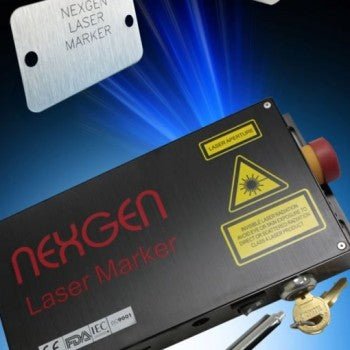

NEXGEN Laser Marker
Extremely Small High Resolution and Precise. Utilising revolutionary fiber laser and scanning technology.
NEXGEN LASER MARKER features the latest in fiber laser source, electronics and scanning technologies.
The NEXGEN ultra-compact turnkey fiber laser marking system is perfect for short-run production environments. It is is efficient, reliable, and easily integrated into manufacturing and production operations. NEXGEN LASER MARKER’s high resolution and compact form makes this laser marking system unique in the world.
Operational Hazard-Semiconductor Laser Diode Module: This laser module emits radiation that is visible/invisible and harmful to human eye. When in use, do not look directly into the laser emitting aperture. Direct viewing of laser diode emission at close range may cause eye damage.
Features & Benefits:
- Portable High Resolution Laser Marking
- Single Integrated Package with USB and RS-232
- Energy Efficient Single Mode Fiber laser

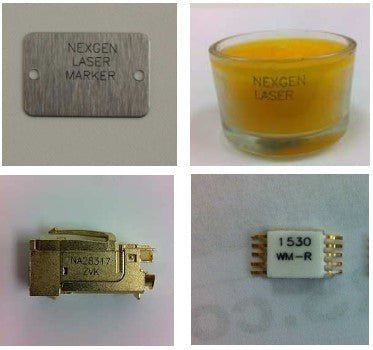

- Very small exceptional circular beam Nexgen Laser Marker Applications
- Anodizing Aluminum Marking directly
- Plastics Marking directly or indirectly
- Ceramic Marking Indirectly
- Stainless Steel Marking indirectly
Specification & Models:
Category | Specification |
---|---|
Optical |
Wavelength: 1064 nm Single Mode Fiber laser Optical Output Power: >7 Watt Marking Area: 25 mm x 20 mm (can be increased for some materials to larger area) Laser Stability: 3.00% Laser Marking Speed: 20 mm/sec Interface: USB and RS-232 Laser Beam Pointing Stability: < ± 10 µrad (10-40°C) |
Electrical |
Operating Voltage: 6 V DC Operating Current: <5 A |
Mechanical |
Dimension: 150 (L) x 100 (W) x 25 (H) mm Operating Temperature: +10ºC to +40°C Storage Temperature: -40ºC to +80°C |
