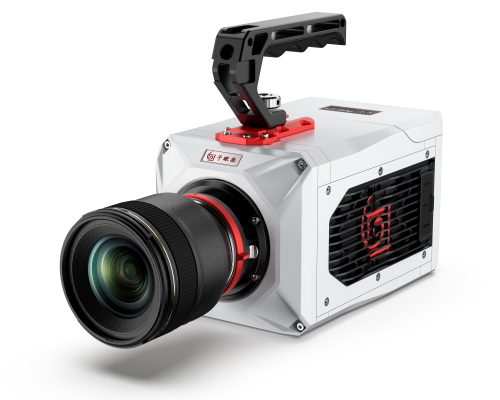

NEO Series High-Speed Camera
NEO20M/ NEO20C
NEO25M/NEO25C
NEO Series – high-end, high-quality Ultra-High-Speed cameras for high-precision, aerospace, high-speed industrial fields.
Top performance parameters, features and powerful data acquisition, storage and processing capabilities.
With data loan up to 30GB/S, they can achieve the highest million frames of the acquisition rate.
Features & Benefits:
- ROI acquisition window setting, support resolution, frame rate linkage adjustment
- Supports auto exposure, EDR secondary exposure
- Supports internal and external synchronization
- Supports rising edge, falling edge, low level, high level and other external signal triggering
- Supports automatic triggering of image changes in a very small area
- Standard shutter release cable to control shooting and saving, one-touch recording function
- Automatic white balance, dark field correction, intelligent denoising, Gamma correction, colour optimization module
- SDI video output supports real-time screen preview and slow playback in the export preview state (select settings)
- Supports PIV cross-frame exposure for non-contact measurement of PIV, PTV, etc.
Applications:
- High-speed water jets, fluid dynamics
- High voltage power generation, lightning strike experiments
- Precision time measurement
- Non-contact measurement of high-frequency vibration displacement, etc
- Laser printing research, Hopkinson’s rod
Specification & Models:
| Model | NEO 20 | NEO 25 |
|---|---|---|
| Resolution | 1280 x 1024 | 1280 x 1024 |
| Bit Depth | 10Bit | 10Bit |
| Frame Rate | Resolution / FPS | Resolution / FPS |
| 1280 x 1024 / 20,000 fps | 1280 x 1024 / 25,000 fps | |
| 1280 x 720 / 28,800 fps | 1280 x 720 / 36,000 fps | |
| 1280 x 256 / 80,000 fps | 1280 x 256 / 100,000 fps | |
| 1280 x 16 / 860,000 fps | 1280 x 16 / 1,000,000 fps | |
| RAM Storage | 320GB | 320GB |
| Sensor | BIS CMOS | BIS CMOS |
| Pixel Size | 20µm x 20µm | 20µm x 20µm |
| Min. Exposure Time | 150ns | 150ns |
| USB Interface | USB 3.0 | USB 3.0 |
| Colour | Mono NEO20M/Colour NEO20C | Mono NEO25M/Colour NEO25C |
| ROI | Support | Support |
| Auto Exposure | Support | Support |
| Dynamic Range | 55dB | 55dB |
| Ethernet | 1Gigabit + 10GbE Dual Interface | 1Gigabit + 10GbE Dual Interface |
| Video Output | SDI | SDI |
| Size (without lens) | 125 x 125 x 210mm | 125 x 125 x 210mm |
| Weight | ≤ 4600g | ≤ 4600g |
