Microspectrometer – World Star Tech Spectrometer-TS

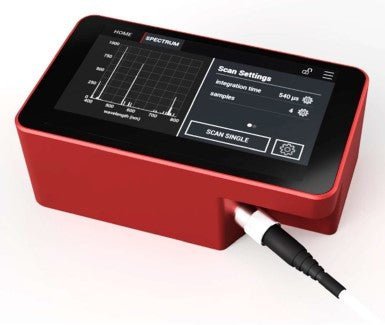

The World Star Tech Spectrometer-TS is a powerful yet ultra-compact microspectrometer sensitive to light ranging from 380 to 800 nanometers. It provides high-performance spectral acquisition, with resolution down to 1 nanometer, and accuracies of +/-0.3 nanometers. Its onboard touchscreen provides an easy to use and convenient interface. Download and analyze the spectrum data using the accompanying PC software.
Features & Benefits:
- Features Applications
- Compact design
- Touch Screen Display and PC Software
- UV/Visible Spectrum
- High resolution and accuracy
- Full Spectrum Analysis
- Chemical Analysis
- Quality Control
- Portable Devices
- SPECIFICATIONS
- Wavelength Range: 380 nm – 800 nm
- Center Spectral Resolution: 1 nm using 50-micron fiber
- Edge Spectral Resolution: 1 nm using 50-micron fiber
- Wavelength Accuracy: +/- 0.3 nm
- Measurement Speed: 200 ms
- Integration: 10 μs to 17.28 ms
- Wavelength Increment: 0.5 nm with touch screen, 0.16 nm using PC
- Operating Humidity: <85% relative, non-condensing
- Operating Temperature: 10-50°C

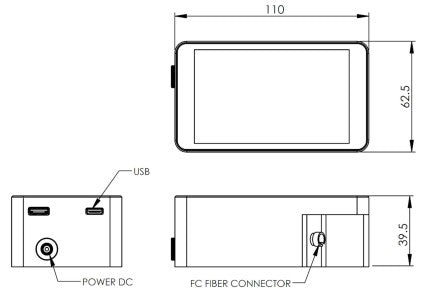

- MECHANICAL SPECIFICATIONS
- Size: 110 mm x 63 mm x 40 mm
- Weight: < 500 g
- Fiber Type: FC (Input NA: 0.22)
