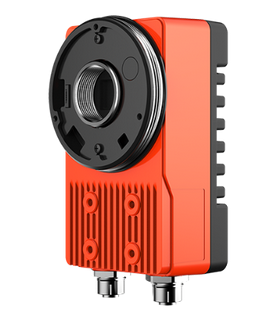

R7000 Series Code Reader
AI-enabled R7000 series code readers achieve high decoding rates and support various 1D and 2D codes in complex scenarios.
Ultra-high 20MP and 25MP resolutions can decode extremely small codes, as well as cover a large field of view (FOV) and depth of field (DOF) to decode multiple codes with sequential output.
The C-mount design provides flexibility for customers to design the most suitable optical solution according to their applications.
Specification & Models:
| Product Model | Resolution | Lens Mount | Max. Frame Rate | Max. Read Speed | Pixel Size |
|---|---|---|---|---|---|
| R7201MG-00C-NGG01E | 5120 × 3840 | C-MOUNT | 15 fps | 90 codes/s | 2.5 μm × 2.5 μm |
| R7200MG-00C-NGG01E | 5440 × 3648 | C-MOUNT | 15 fps | 90 codes/s | 2.4 μm × 2.4 μm |
| R7250MG-00C-NGG01E | 5120 × 5104 | C-MOUNT | 12 fps | 90 codes/s |
High Decoding Rate
- Self-developed AI Algorithms satisfy complex scene code reading
- AI Enable Algorithm: accurate positioning, stable decoding time and accurate decoding
- Multi-configuration Polling
- Failed images saving while reading enhances the decoding rate
Ultra High Resolution
- 20MP & 25MP resolution options suitable for large FOV and small size code reading applications
- 20MP and 25MP resolution
- Large FOV and DOF
- Decoding minimal codes
Flexible Solution Design
- C-mount and ultra high-resolution design flexible for extreme scenes solution design
- C-mount design flexible for selecting lenses
- Multi-AOI and multi-code fast decoding, outputting sequentially by region
- Up to IP67 protection level with lens cover installed
