R4000 Series Code Reader

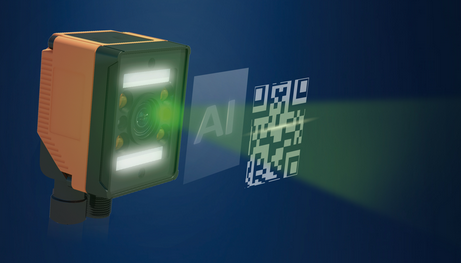

AI-enabled R4000 series code readers achieve high decoding rates and support various 1D and 2D codes, even in complex scenarios.
They feature three fully integrated illumination options: transparent, polarized, and diffused lights, each with R, G, and B color options, making them adaptable to a wide range of applications.

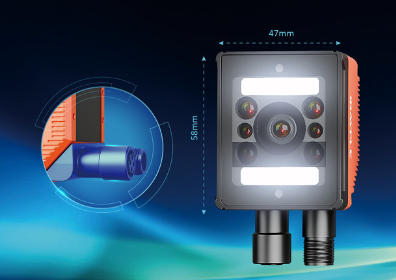

Rotatable connectors and a compact design allow for easy installation in space-constrained areas.
Specification & Models:
| Product Model | Resolution | Network Port | Max. Frame Rate | Max. Read Speed | Operating Distance |
|---|---|---|---|---|---|
| R4013MG-07M-RGG01E | 1280 × 1024 | 100M Ethernet | 60 fps | 60 codes/s | 50-500 mm |
| R4013MG-12M-RGG01E | 1280 × 1024 | 100M Ethernet | 60 fps | 60 codes/s | 50-500 mm |
| R4013MG-07M-WGG01E | 1280 × 1024 | 100M Ethernet | 60 fps | 60 codes/s | 50-500 mm |
| R4013MG-12M-WGG01E | 1280 × 1024 | 100M Ethernet | 60 fps | 60 codes/s | 50-500 mm |
| R4013MG-07M-BGG01E | 1280 × 1024 | 100M Ethernet | 60 fps | 60 codes/s | 50-500 mm |
| R4013MG-12M-BGG01E | 1280 × 1024 | 100M Ethernet | 60 fps | 60 codes/s | 50-500 mm |

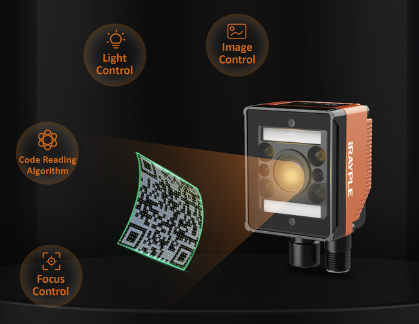

High Decoding Rate
- Self-developed AI Algorithms satisfy complex scenes code reading
- AI Enable Algorithm: accurate positioning, stable decoding time and accurate decoding
- Multi-configuration Polling
- Fully integrated multi-illumination type and multi-spectrum options
Simple And Intuitive
- One-click training for easy debugging, intuitive results indication in any view
- One-click training: easy for deployment and debugging
- Dual-aimer indicates the centre of FoV
- Intuitive red and green lights indicate decoding result in any view
Flexible Deployment
- Small size and rotatable connectors meet flexible installation demands
- Small size and rotatable connectors: flexible for installation
- Multi-camera networking, single camera summary output, easy to operate
- EasyID Setup & Debugging Tool: minimal set up
