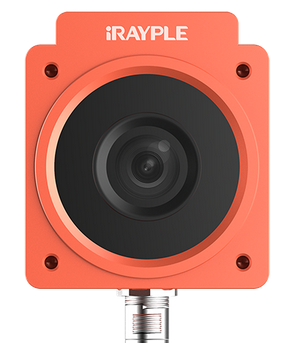

AGV Code Reader
The AGV code reader represents a specialized product meticulously crafted and innovated for the Autonomous Mobile Robot(AMR) Industry.
Its standardized design facilitates swift integration by AMR manufacturers, streamlining the adoption process.
Features & Benefits:
- High performance decode algorithm, can be applied when DM code is under condition of dirty/defect/low contrast during operation.
- Embedded decode algorithm. High speed/accuracy.
- Support DM-12&DM-14 and DM code array.
- Embedded aviation plug, abundant IO interfaces.
- 5-way indicator for debug and camera status monitoring.
- Support multiple UserSet parameter save/load/switch.
- Apply M12 FA lens, supports locating DM code in large FOV.
Basic
- Max. Frame Rate: 100 fps
- Sensor Type: 1/4″, CMOS
- Pixel Size: 5.4 μm × 5.4 μm
- Lens Mount: M12
- Trigger Mode: FreeRun
- Software: SVStudio
- Certifications: CE, FCC, KC
- Function: DM-12 & DM-14, DM4x4
Performance
- Focal Length: 3.37mm
- Operating Distance: 100mm
- FoV: 104mm × 85mm
- Max. Read Speed: 125 codes/s
- Max. Operating Speed: 3m/s
- Focus Control: Stationary type
- Light Source Type: White LED
Port
- Connector: 1ea M12 connector
- Network Port: 100M Ethernet
- GPIO Interface: 1 opto-isolated input, 1 opto-isolated output
- Communication Mode: 100M Ethernet, RS485
- Communication Protocol: SDK, Serial, TCPServer, TCPClient
- LED Indicator: 5 LED indicator, SYS, NET, Trigger and 2 user-defined LED
Power
- Power Supply: DC24V ±10%
- Power Consumption:
- Disable illumination: 2.65W @ 24VDC
- Enable illumination: 5.4W @ 24VDC
Structure
- Product Dimensions: 60mm × 68mm × 43mm (Excluded interface port)
- Packaging Dimensions: 164mm × 122mm × 91mm
- Net Weight: <225 g
- Gross Weight: <350 g
- Protection: IP64
Environment
- Operating Temperature: -20℃～+50℃
- Operating Humidity: 20%～95%, No condensation
- Storage Temperature: -30℃～+80℃
