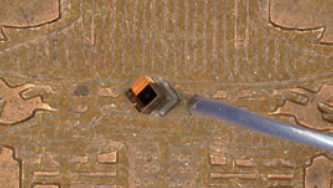

With a compact camera head with a small outer diameter, you can see spaces that you couldn’t see before, and you can use the camera in places you couldn’t use before.
| Specification | Details |
|---|---|
| Sensor Size | 1/37 type CMOS sensor, 0.5 x 0.5 mm |
| Number of Pixels | 200 x 200 |
| Frame Rate | 60 fps |
| Electric Shutter | YES |
| Lens Type | Angle of View | Depth of Field (in air) | Best Focus Position |
|---|---|---|---|
| Type A | 120° | 1.0 mm ∼ (Infinity) | 19 mm* |
| Type B | 95° | 1.0 mm ∼ (Infinity) | 6 mm |
| Type C | 80° | 1.0 mm ∼ (Infinity) | 10 mm |
| Type D | 70° | 1.0 mm ∼ (Infinity) | 30 mm |
| Type E | 60° | 1.0 mm ∼ (Infinity) | 100 mm |
| Type F | 45° | 1.0 mm ∼ (Infinity) | 300 mm |
| Cable Type | Cable Length | Cable Diameter |
|---|---|---|
| Type 1 | 1m | 0.37 mm |
| Type 2 | 2m | 0.37 mm |
| Type 3 | 3m | 0.37 mm |
| Type 4 | 4m | 0.37 mm |
