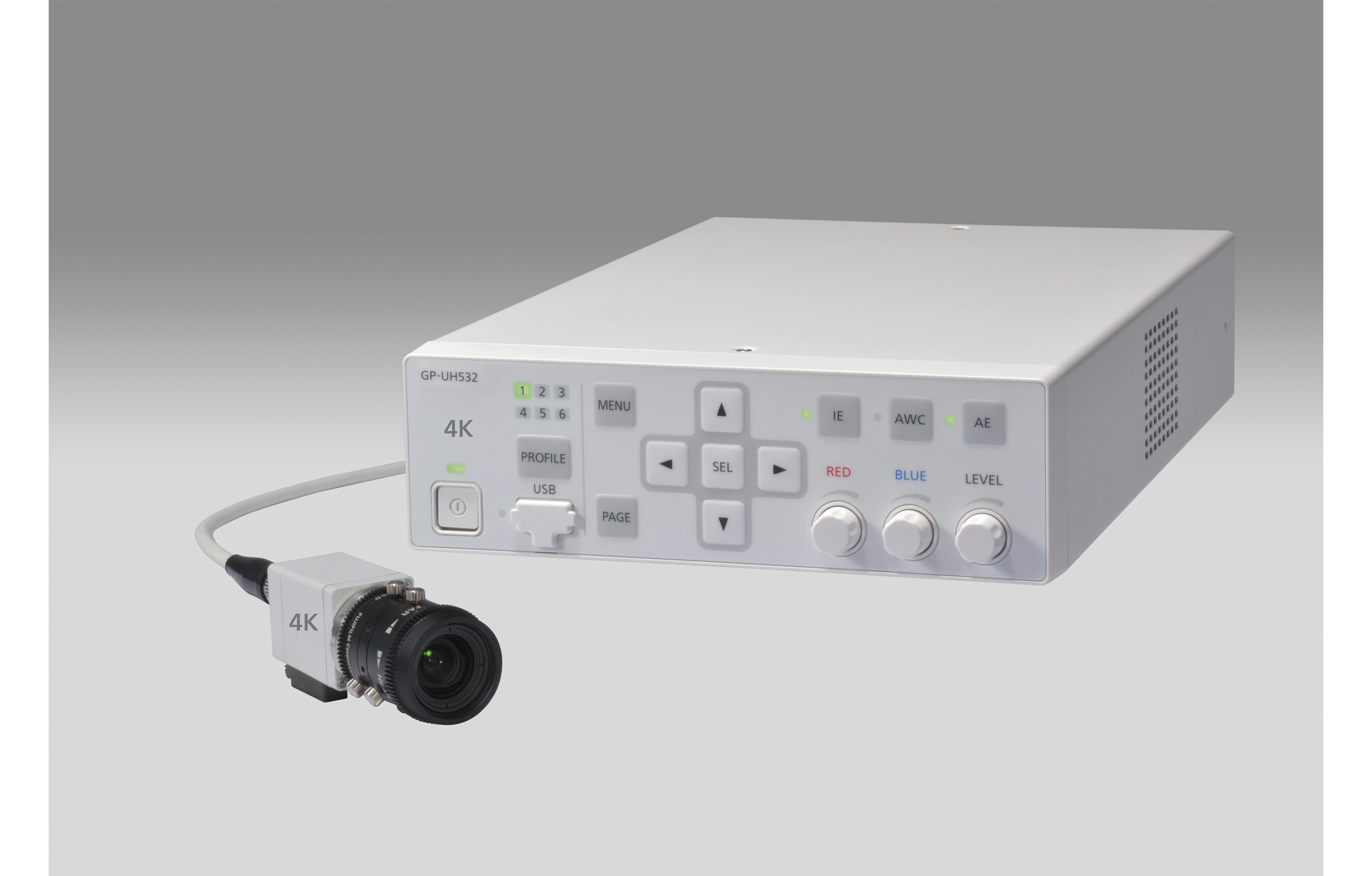

GP-UH532 Series 4K3MOS OEM Camera Solution
This product supports 4K resolution (3840 x 2160), which provides four times the resolution of Full HD, and a horizontal resolution of 1600 TV lines.
The camera head GP-UH532HU features a space-saving design due to its compact size.
Support for 59.94p/50p provides smooth images.
It also supports ITC-R BT.2020, making it possible to reproduce nearly all colors in the specified color reproduction range. Our technology enables accurate color separation of the three primary colors of light (Red, Green, and Blue) using the same technology as professional broadcast cameras. A specialized sensor is used to process each color resulting in excellent color reproduction.
Features & Benefits:
- 4K (3,840 x 2,160) 59.94p/50p
- 1/3″ type 3MOS
- BT2020 supported
- Simul 4K output /HDMI terminal x 2 (for 4K and 4K/Full HD), 3G SDI x 5
- Powerful Image enhancement available (WDR/Dark area correction/Over exposure reduction/and so on)
Specification & Models:
- GPUH532HU: Camera Head Module
- GPUH532CU: Camera Control Unit Module
- GPUH532JU: Connection Parts Kit
