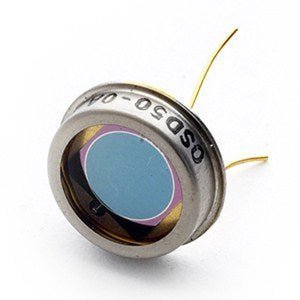

General Purpose Silicon Sensor (Series 0)
Series 0 photodiodes are designed for operation at up to 30V reverse bias voltage for applications where low capacitance and high speed are important. These detectors are tailored for peak responsivity in the 780-950 nm range but are successfully used for pulsed applications throughout the spectral range from 430-1064 nm.
Features & Benefits:
- Bias: 0-30V
- Response: 400-1064nm
- Responsivity (900nm) 0.54 A/W
- Technology: pn junction
Applications:
- Aerospace
- Defence
- Industrial
- Medical
- Space
