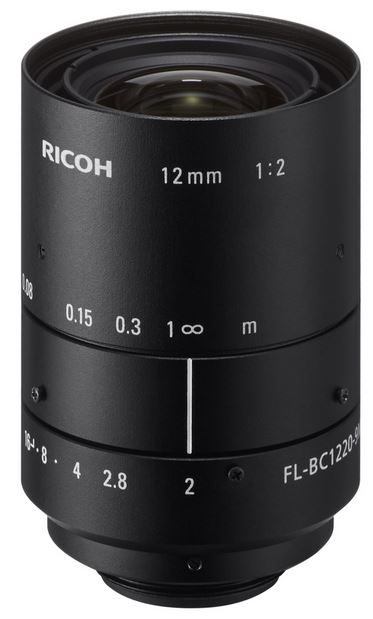

FL-BC1220-9M
Fixed focal length lens, high-resolution, compact 9 Megapixel lens, with locking screws, for C- and CS- Mount cameras.
High resolving power of 135 lp/mm from centre to corners of the image.
Specification & Models:
| Specification | Details |
|---|---|
| Remarks | Pixel Pitch: 3.69 µm |
| Format | 1″ (1.1″) |
| Mount | C |
| Focal Length | 12.0 mm |
| Iris Range | F2 – 16 |
| Iris Type | Manual |
| Max. Iris Aperture | 1:2.0 |
| Focus Control | Manual |
| Minimum Object Distance | 80 mm |
| Filter Size | 40.5 x 0.5 mm |
| Dimensions | Ø42 x 60.5 mm |
| Weight | 156 g |
| Temperature Range | -10°C to +50°C |
| Comment | Back focal length: 14.5 mm |
| Horizontal Angle of View 1/3″ | 22.7° |
| Horizontal Angle of View 1/2″ | 30.0° |
| Horizontal Angle of View 2/3″ | 40.6° |
| Horizontal Angle of View 1″ | 57.0° |
| Resolution | 9M |
