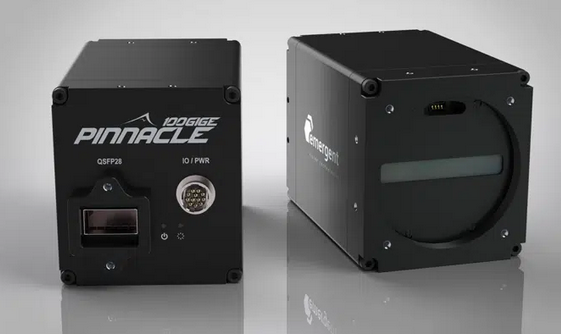

LZ Series 100GigE Mono Line Scan Camera
16K line-scan cameras – 100GigE QSFP28 interface
Line rate of up to: Single Line – 400KHz, Trilinear – 133KHz.
This enables high-speed and low-noise image capture, ensuring all your inspection, sorting and production control requirements are met. The 25GigE SFP28 interface allows for cable lengths from 1M up to 10KM without the need for costly fiber converters/repeaters.
Applications:
- Industrial Inspection
- Printing Inspection
- Label Inspection
- Film Inspection
- PCB Inspection
- Automotive Inspection
- Food Sorting and Grading
- Pharmaceutical Inspection
Specification & Models:
| Specification | Details |
|---|---|
| Model | TLZ-9KG5-M |
| Resolution | 9K 256 TDI |
| Line Rate | 608 KHz |
| Tri Rate | Not Provided |
| Sensor Name | Gpixel GLT5009BSI |
| Pixel Size | 5×5 µm |
| Model | LZ-16KG5-M |
| Resolution | 16Kx16 |
| Line Rate | 400 KHz |
| Tri Rate | 133 KHz |
| Sensor Name | Gpixel GL5016 |
| Pixel Size | 5×5 µm |
