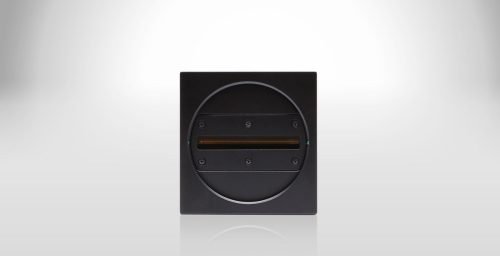

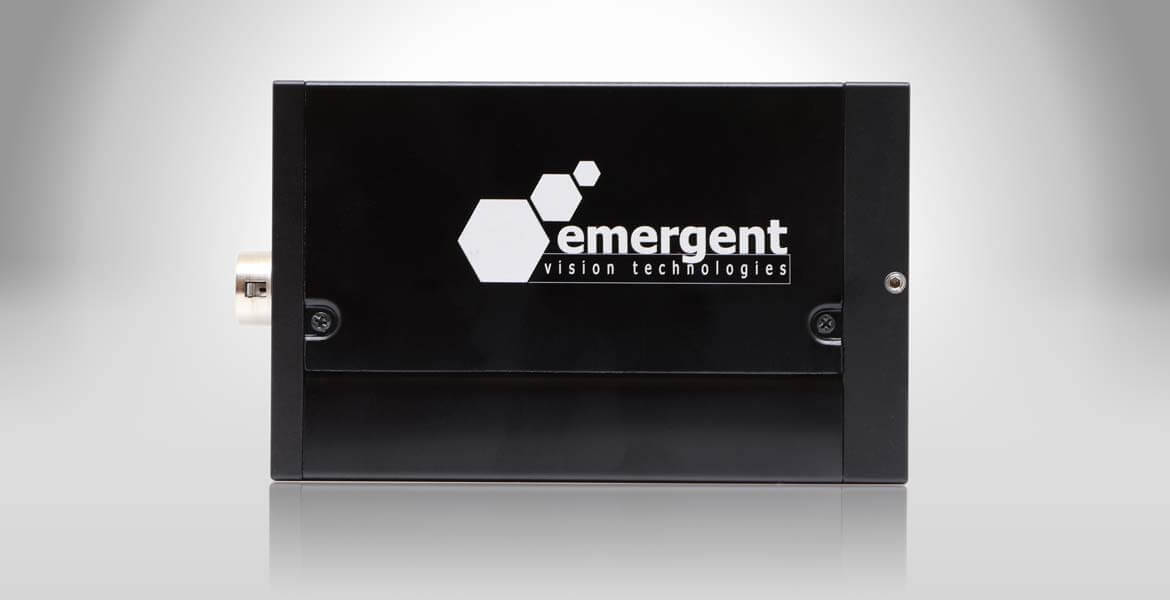

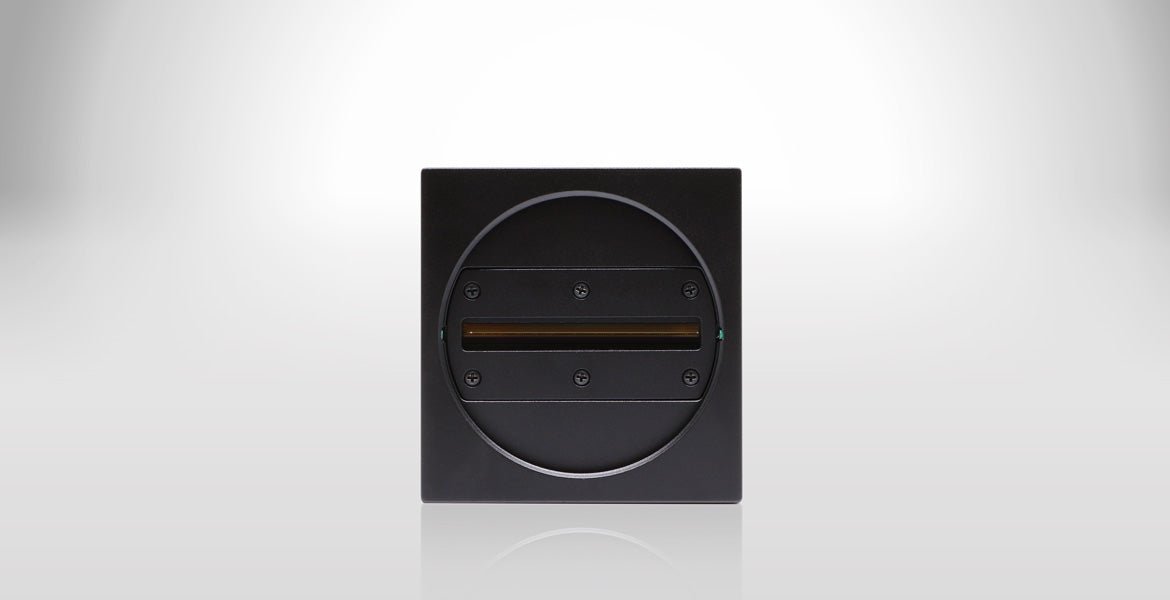

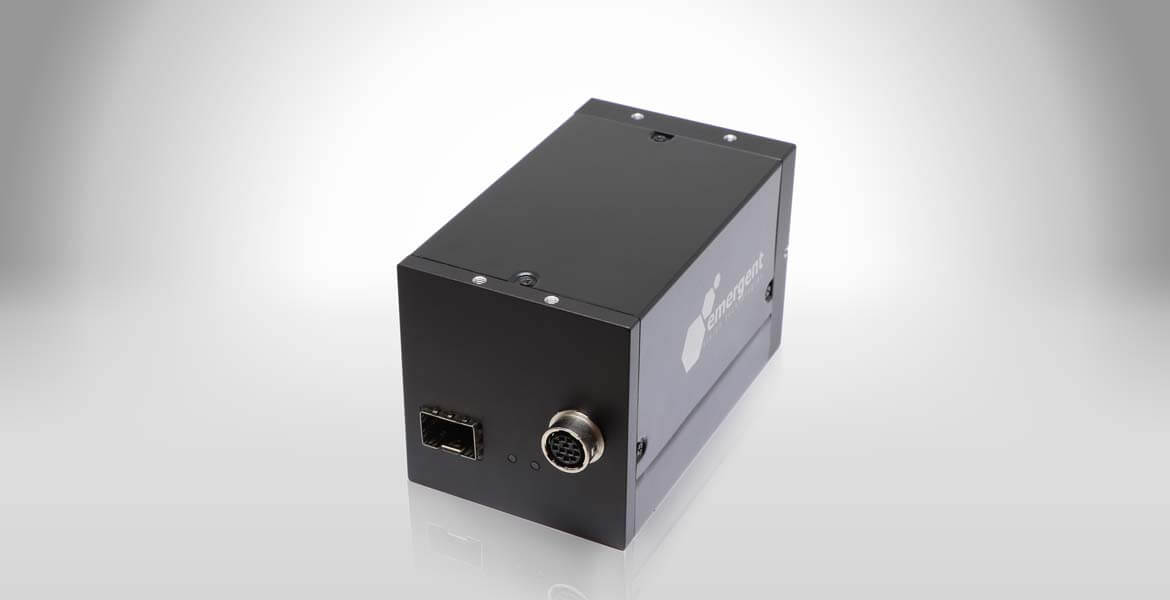

LR Series 10GigE Mono Line Scan Camera
Resolutions of up to 16K x 16
Single line rate up to 172Khz
Trirate up to 57Khz
Features & Benefits:
- LR and TLR Series
- Trilinear and Mono
- 10GigE SFP+
- 10x GigE Speeds
- GigE Vision
- Sync to 1µs
Specification & Models:

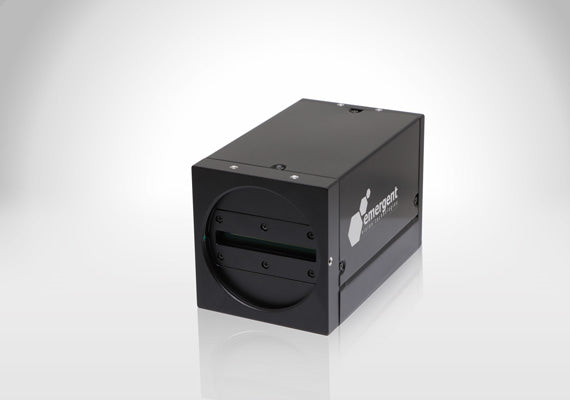

| Specification | LR-4KG35-M | LR-8KG7-M | LR-8KG-M | LR-16KG35-M | LR-16KG5-M | TLR-9KG5-M |
|---|---|---|---|---|---|---|
| Resolution | 4Kx2 | 8Kx4 | 8Kx16 | 16Kx2 | 16Kx16 | 9K 256 TDI |
| Line Rate | 172 KHz | 150 KHz | 137 KHz | 70 KHz | 74 KHz | 121 KHz |
| Tri Rate | 57 KHz | 50 KHz | 45 KHz | 23 KHz | 25 KHz | 40 KHz |
| Sensor Name | Gpixel GL3504 | Gpixel GL7008 | Gpixel GL0816 | Gpixel GL3516 | Gpixel GL5016 | Gpixel GLT5009BSI |
| Pixel Size | 3.5×3.5 µm | 7×7 µm | 5×5 µm | 3.5×3.5 µm | 5×5 µm | 5×5 µm |
