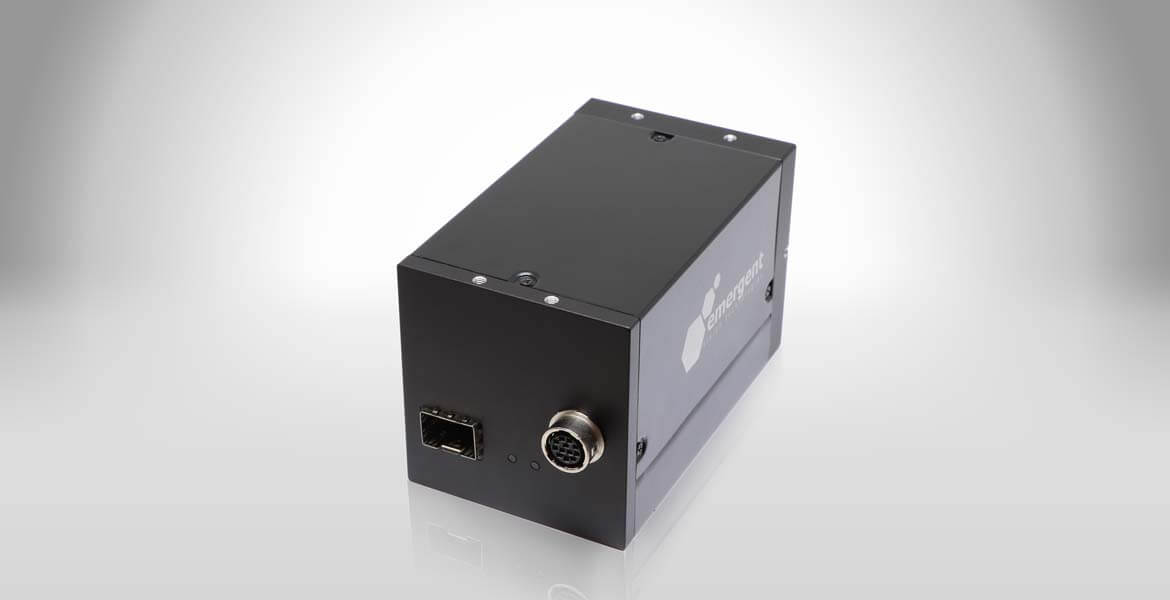

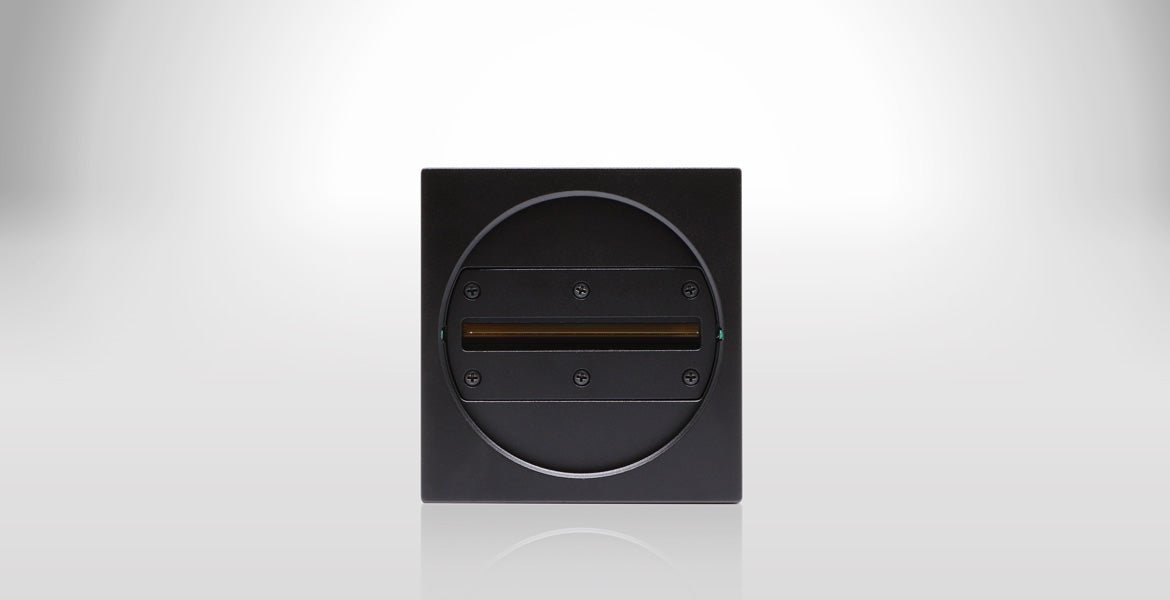

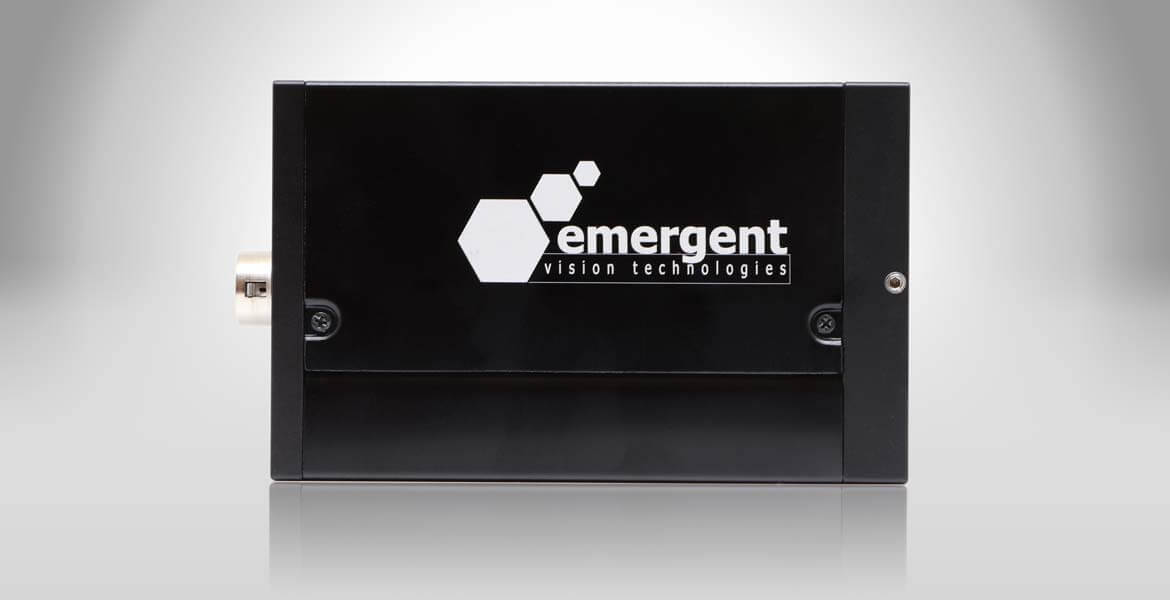

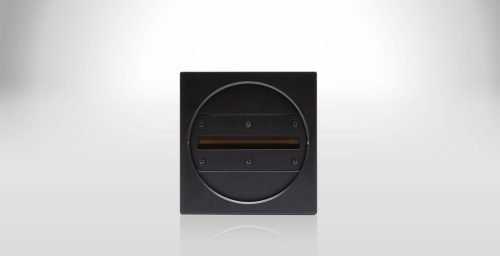

LB Series 25GigE Mono Line Scan Camera
8K / 16K line-scan cameras – 25GigE SFP interface
Line rate of up to: Single Line – 300KHz, Trilinear – 100KHz.
This enables high-speed and low-noise image capture, ensuring all your inspection, sorting and production control requirements are met. The 25GigE SFP28 interface allows for cable lengths from 1M up to 10KM without the need for costly fiber converters/repeaters.
Applications:
- Industrial Inspection
- Printing Inspection
- Label Inspection
- Film Inspection
- PCB Inspection
- Automotive Inspection
- Food Sorting and Grading
- Pharmaceutical Inspection
Specification & Models:
| Specification | Details |
|---|---|
| Model | LB-8KG7-M |
| Resolution | 8Kx4 |
| Line Rate | 300 KHz |
| Tri Rate | 100 KHz |
| Sensor Name | Gpixel GL7008 |
| Pixel Size | 7×7 µm |

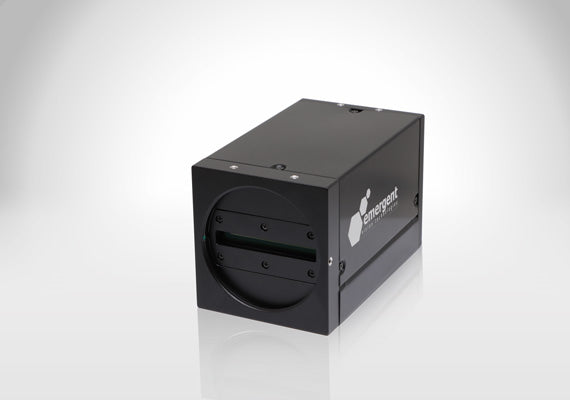

| Model | LB-8KG-M |
| Resolution | 8Kx16 |
| Line Rate | 200 KHz |
| Tri Rate | 66 KHz |
| Sensor Name | Gpixel GL0816 |
| Pixel Size | 5×5 µm |
| Model | TLB-9KG5-M |
| Resolution | 9K 256 TDI |
| Line Rate | 304 KHz |
| Tri Rate | 100 KHz |
| Sensor Name | Gpixel GLT5009BSI |
| Pixel Size | 5×5 µm |
| Model | LB-16KG35-M |
| Resolution | 16Kx2 |
| Line Rate | 100 KHz |
| Tri Rate | 33 KHz |
| Sensor Name | Gpixel GL3516 |
| Pixel Size | 3.5×3.5 µm |
| Model | LB-16KG5-M |
| Resolution | 16Kx16 |
| Line Rate | 180 KHz |
| Tri Rate | 60 KHz |
| Sensor Name | Gpixel GL5016 |
| Pixel Size | 5×5 µm |
