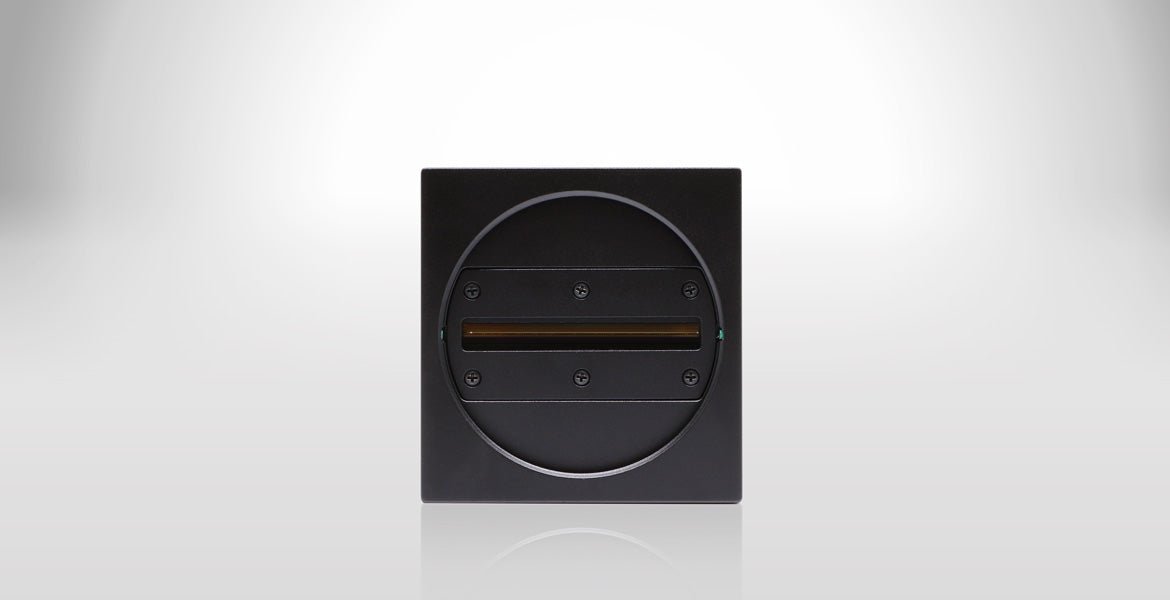

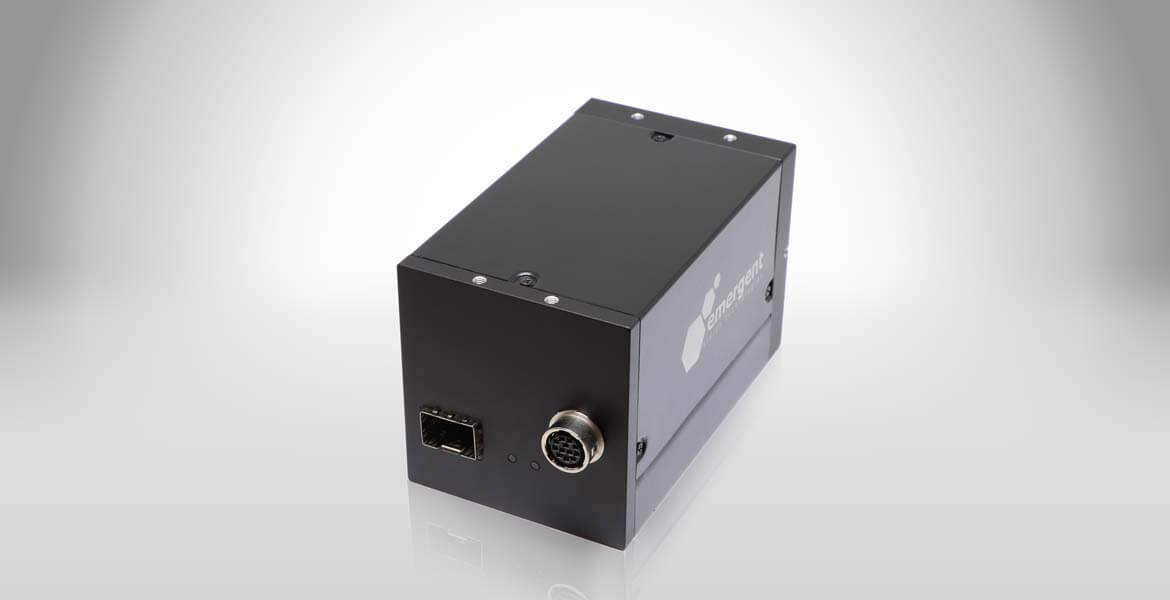

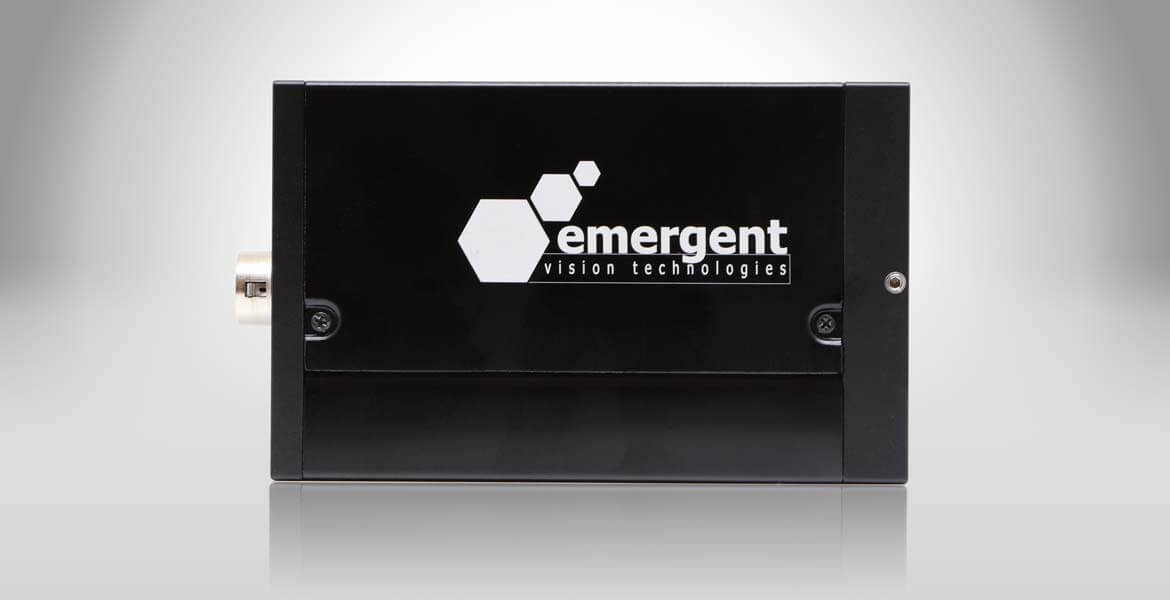

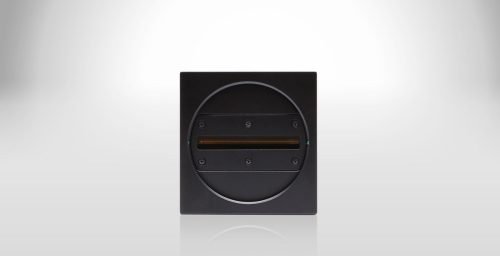

LB Series 25GigE Colour Line Scan Camera
8K / 16K line-scan cameras – 25GigE SFP interface
Line rate of up to: Single Line – 300KHz, Trilinear – 100KHz.
This enables high-speed and low-noise image capture, ensuring all your inspection, sorting and production control requirements are met. The 25GigE SFP28 interface allows for cable lengths from 1M up to 10KM without the need for costly fiber converters/repeaters.
Applications:
- Industrial Inspection
- Printing Inspection
- Label Inspection
- Film Inspection
- PCB Inspection
- Automotive Inspection
- Food Sorting and Grading
- Pharmaceutical Inspection
Specification & Models:

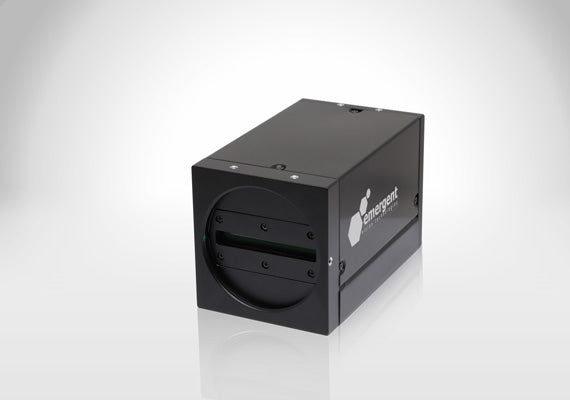

| Specification | LB-8KG7-C | LB-8KG-C | LB-16KG35-C | LB-16KG5-C |
|---|---|---|---|---|
| Resolution | 8Kx4 | 8Kx16 | 16Kx2 | 16Kx16 |
| Line Rate | 300 KHz | 200 KHz | 100 KHz | 180 KHz |
| Tri Rate | 100 KHz | 66 KHz | 33 KHz | 60 KHz |
| Sensor Name | Gpixel GL7008 | Gpixel GL0816 | Gpixel GL3516 | Gpixel GL5016 |
| Pixel Size | 7×7 µm | 5×5 µm | 3.5×3.5 µm | 5×5 µm |
