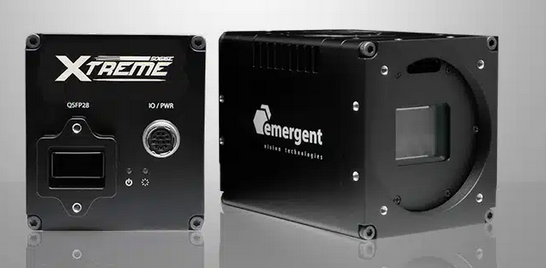

HX Series 50GigE Area Scan Colour Camera
Resolutions from 2.5 MP to 152 MP.
Frame Rates from 16FPS (HX-150-G-* / 150MP) to 1730FPS (HX-2000-G-*)
Features & Benefits:
- Area Scan
- 50GigE QSFP28
- 50x GigE Speeds
- GigE Vision® and Genicam™ compliant
- Sync to 1µs
- Industry’s Fastest Interface
Applications:
- Virtual reality
- Goal Line technology
- Volumetric capture
- Motion capture
- Immersive 3D Content
- Finish Line Vision
- Referee Assist
- Flat Panel Inspection
- Machine Vision
- Wind Tunnels
- Biomedical
Specification & Models:
| Model No | Resolution | Frame Rate | Sensor Name | Pixel Size |
|---|---|---|---|---|
| HX-2000-G-C | 2.5MP | 1730fps | Gpixel GSPRINT4502 | 4.5×4.5µm |
| HX-10000-G-C | 10MP | 500fps | Gpixel GSPRINT4510 | 4.5×4.5µm |
| HX-21000-G-C | 21MP | 300fps | Gpixel GSPRINT4521 | 4.5×4.5µm |
| HX-65000-G-C | 65.4MP | 71fps | Gpixel GMAX3265 | 3.2×3.2µm |
| HX-100-G-C | 103.7MP | 24fps | Gpixel GMAX32103 | 3.2×3.2µm |
| HX-150-G-C | 152MP | 16fps | Gpixel GMAX32152 | 3.2×3.2µm |
