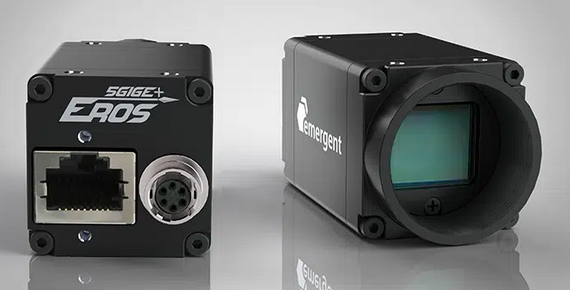

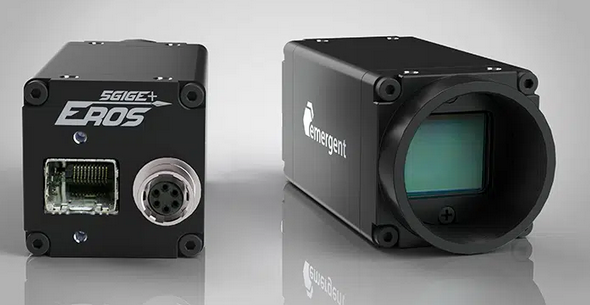

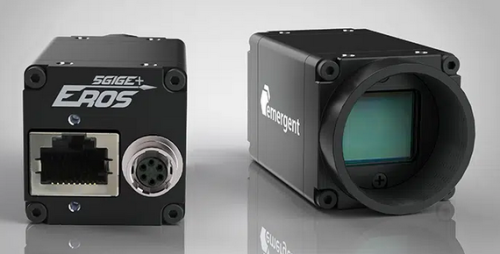

HE Series 5GigE Polarized Colour Camera
Cameras that utilize either the Sony Pregius IMX250 or IMX253 CMOS sensor. At full resolution of 2448×2048 and up to 80fps or 4096 x 3000 at 40fps (depending on the snesor).
Other benefits include high sensitivity, high frame rate, low noise, and high picture quality. They offer multi-camera synchronization at <1μs, low CPU overhead, excellent price-performance ratio, and fiber cable lengths from 1M to 10KM without the need of fiber converters or repeaters.
Features & Benefits:
- High-speed 1, 2.5, 5GigE
- Back-illuminated pixel structure
- 1, 2.5, 5x the speed of GigE
- High data/frame rates
- GigE Vision® and GenICam™ compliant
- Optional IP67 housing
Applications:
- Virtual Reality
- 4D Reconstruction
- Volumetric Capture
- Motion Capture
- Microscopy Imaging
- Player Analytics
- Transportation Logistics Imaging
- Immersive 3D Content
- Goal Line Technology
- Finish Line Vision
- Referee Assist
- Sports, Broadcast, Entertainment
- Pharmaceutical Inspection
Specification & Models:
| Model | Resolution | Frame Rate | Sensor Name | Pixel Size |
|---|---|---|---|---|
| HE-5000-S-PM | 5MP | 81.5 fps | Sony IMX250MZR | 3.45 × 3.45 µm |
| HE-12000-S-PM | 12MP | 40 fps | Sony IMX253MZR | 3.45 × 3.45 µm |
| HE-5000-S-PC | 5MP | 81.5 fps | Sony IMX250MYR | 3.45 × 3.45 µm |
| HE-12000-S-PC | 12MP | 40 fps | Sony IMX253MYR | 3.45 × 3.45 µm |
