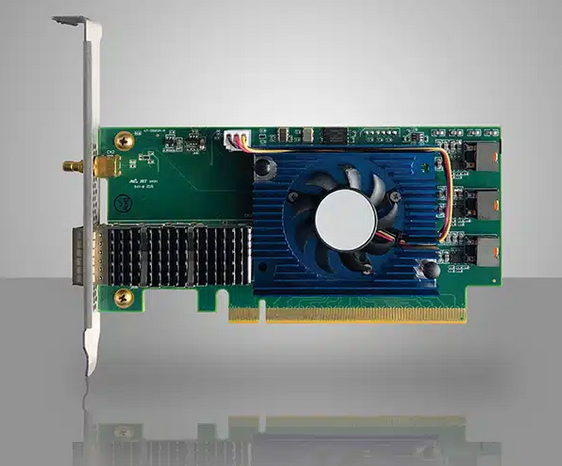

Zeus 100GigE Network Interface Card

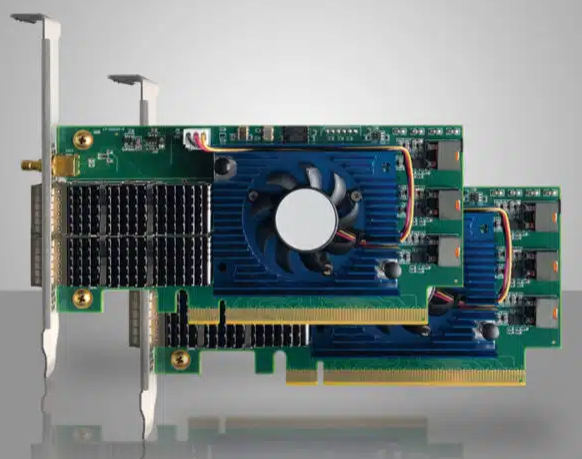

100GigE Zeus Network Interface Cards series are available as either a single or dual port configuration. Please note that the dual port card requires a PCIe Gen4x16 slot
100GigE QSFP28 dual port PCIe Gen4 x16 OR 100GigE QSFP28 single port PCIe Gen3 x16 smart NIC with front panel 5V TTL input trigger port. This card is part of a series of progressively more powerful PC peripherals intended to allow customers to get the most out of their Emergent ultra-high-speed cameras for the widest range of applications.
Features & Benefits:
- Most optimal performance for any video stream
- Absolute minimal CPU and system memory utilization
- Absolute lowest latency and jitter
- Absolute best price performance and no licensing
- Full Ethernet network compatibility
- CPU offloading
- Real time front panel trigger port
- GPU Direct
- Camera multiplexing with switches
Specification & Models:
| Model | Ports | PCIe | Interface | OS | Trigger |
|---|---|---|---|---|---|
| PZ-100-DUAL | 2 | PCIe Gen4x16 | 100GigE QSFP28 | Windows, Linux | 5V TTL input |
| PZ-100 | 1 | PCIe Gen3x16 | 100GigE QSFP28 | Windows, Linux | 5V TTL input |
