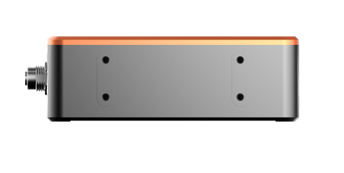

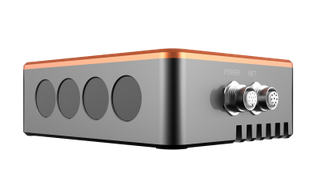

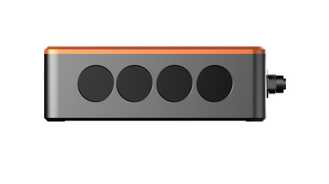

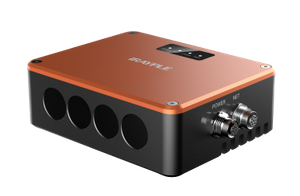

DS5131MG30CE 3D Stereo Camera
- Built-in algorithm supports high-precision volume measurement and 3D object location;
- Small dimension and high integration make better cost performance and smaller
- Speckle-module illumination makes light uniform and reliable;
- Excellent filter design depressed light from environment;
- 4 indicators are used to debug and function display;
- Industrial-grade M12 connector, IP65 protection level;
- Support multi-cameras cascade;
Basic
- Series 5000 Series
- Resolution Mono：1280 × 960；Color：1288 × 1032
- Max. Frame rate 30 fps
- Sensor Type Mono：1/3″，CMOS；Color：1/2.7″，CMOS
- Shutter Mode Global
- Pixel Size Mono：3.75 μm × 3.75 μm；Color：4.0 μm × 4.0 μm
- Mono/Color Mono&Color
- Lens Mount M12
- Trigger Mode Software Trigger/Hardware Trigger/Free Run Mode
- Software SCV
- Certifications CE，FCC
- Function Volume measurement，Positioning guide
Performance
- Near FoV 590 mm×540 mm
- Far FoV 3880 mm×3190 mm
- Operating Distance 600 mm-3500 mm
- Z-axis Accuracy 1 m@±2 mm
- Data Type Color map, depth map, points cloud, dimension
- Light Source type Illuminator module
- Laser Grade class1
Port
- Connector 2 industrial-grade connector supports Ethernet and GPIO
- Network Port Code-A, GigE Ethernet
- GPIO Interface 2-opto isolated inputs
- Communication Mode Ethernet、RS232
- Communication protocol SDK，Serial，TCPServer，TCPClient
- LED Indicator Power ethernet, network, trigger, laser
Power
- Power Supply Support DC12V-24V wide-range power supply, suitable for DC12V/24V voltage environment
- Power Consumption ＜10.0 W
Structure
- Packaging Dimensions 369 mm × 257 mm × 148 mm
- Net Weight ＜1500 g
- Gross Weight ＜3200 g
- Protection IP65
- Casing Material Aluminium alloy
Environment
- Operating Temperature -20℃-+50℃
- Operating Humidity 20%-95%, condensation
- Storage Temperature -30℃-+80℃
