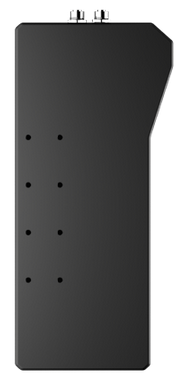

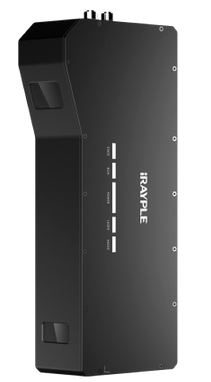

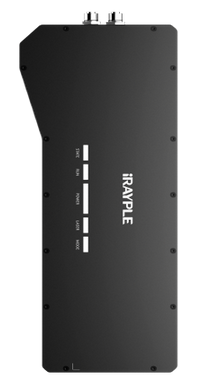

DH-MV-D5201MG100E 3D Industrial Camera
- Pre-calibration during production and support high speed output of 3D measurement result in mm-level.
- Configurable working distance and FOV.
- Integrated with 3D calibration kits.
- Maximum scale: 1000mm×1000mm×2000mm(W×H×L).
- High accrate 3D measurement:5mm*5mm*5mm.
- Supports functions such as point cloud image, W*H*L, volume measurement data, Integral volume, etc.
Basic
- Series: 5000
- Model: DH-MV-D5201MG100E
- Max. Frame Rate: 250 fps
- Software: Volume3D
- Certifications: CE, FCC
- Function:
- Point cloud image
- W*D*L data
- Volume measurement
- Integral volume
Performance
- Near FoV: 1000mm
- Far FoV: 2200mm
- Clearance Distance: 830mm
- Operating Distance: 1000mm～1800mm (Affects measurement range)
- Measuring Range: 1000mm
- Measuring Accuracy: 5mm * 5mm * 5mm
- Max. Operating Speed: 2m/s
- Laser Grade: 3B
Ports
- Connector: 2 industrial grade M12 connectors, for Ethernet and GPIO
- Network Port: Code-A, Gigabit Ethernet
- GPIO Interface: 12-pin I/O interface, contains POWER/IO/Encoder interface
- Port: Ethernet, RS232
- Communication Protocol: SDK, Serial, TCPServer, TCPClient, Profinet
- LED Indicator: Power, Network, Trigger, Laser, Mode
Power
- Power Supply: Supports DC12V～24V wide-range power supply, adapts for industrial DC12V/24V different voltage environment
- Power Consumption: <10.0W
Physical
- Product Dimensions: 370mm × 65.6mm × 150mm (Not including interface height)
- Net Weight: <4 kg
- Protection: IP65
- Casing Material: Aluminum alloy
Environment
- Operating Temperature: -10℃～+50℃
- Operating Humidity: 20%～85%, no condensing
- Storage Temperature: -30℃～+70℃
