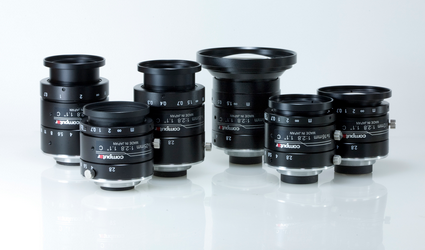

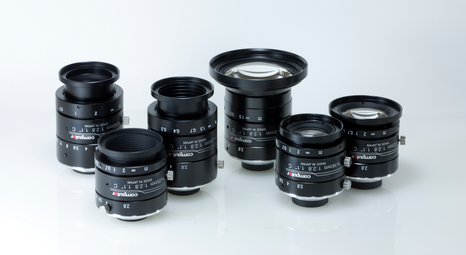

MPY Series 1.1″ – up to 12MP (C Mount)
Designed to fully leverage the high sensitivity and precise high-speed imaging of the 1.1” Sony IMX253 and IMX255 sensors.The MPY Series supports 1.1” sensor format at 12 Megapixel resolution in a C-mount lens.
The MPY Series combines high performance optics with a variety of common focal lengths for maximum application flexibility.
Features & Benefits:
- Suitable for 1.1″ 12MP sensor
- Also usable for 1.2″ 24MP
- Super compact design
- Floating design achieves ultra-high resolution from Near to Far.
- Vibration resistance up to 5G
- Available in 8, 12, 16, 25, 35 and 50mm focal lengths
Specification & Models:
| Model Name | Focal Length | Working Distance | Distortion | Weight |
|---|---|---|---|---|
| V0828-MPY2 | 8mm | 0.2m – Inf. | -0.6%(y=8.8) | 157.4g |
| V1228-MPY2 | 12mm | 0.3m – Inf. | -0.5%(y=8.8) | 97.2g |
| V1628-MPY2 | 16mm | 0.3m – Inf. | -0.5%(y=8.8) | 89.8g |
| V2528-MPY | 25mm | 0.3m – Inf. | 0.3%(y=8.8) | 78.6g |
| V3528-MPY | 35mm | 0.3m – Inf. | -0.1%(y=8.8) | 103.0g |
| V5028-MPY | 50mm | 0.5m – Inf. | 0.1%(y=8.8) | 107.0g |
