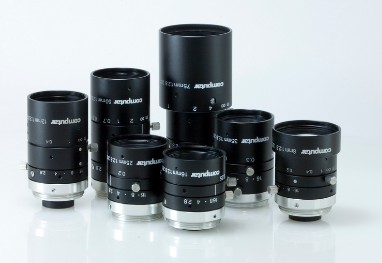

MPW3 Series 6 Megapixel 2/3″ Lens (C Mount)
6 Megapixel 2/3″ Ultra-low Distortion Machine Vision Lens Series optimized for sensors and applications for the highest demands
The MPW3 Series has a fixed focal length range from 5mm to 75mm and a resolution of 8 megapixels at max. 2.74μm.
The C-mount lenses are lightweight and have a very compact design. Important factors such as very low distortion, reliable illumination right up to the edge, and short working distances have been retained. They are suitable for sensors from 1/2.5“ to 2/3“ and optimized for the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178.
Features & Benefits:
- 2/3″ Format
- C-Mount
- 6 Megapixel
- F2.8 to F16
- Full HD Format
- Compact and Lightweight
- Shorter Working Distance
- Nominal Distortion Design
- Ensures corner brightness
- Available in 5mm, 8mm, 12mm, 16mm, 35mm, 50mm and 75mm focal length
Specification & Models:
| Model Name | Sensor Size | Focal Length | Working Distance | Distortion | Weight |
|---|---|---|---|---|---|

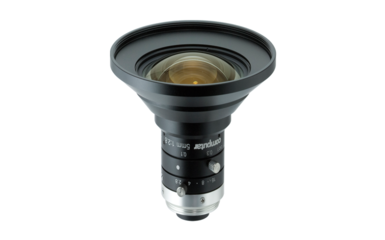

| M0528-MPW3 | 2/3″ | 5mm | 0.1m – Inf. | 0.03% (y=5.5) | 163g |
| M0828-MPW3 | 2/3″ | 8mm | 0.1m – Inf. | -1.80% (y=5.5) | 58g |
| M1228-MPW3 | 2/3″ | 12mm | 0.1m – Inf. | -0.10% (y=5.5) | 60g |
| M1628-MPW3 | 2/3″ | 16mm | 0.25m – Inf. | 0.47% (y=5.5) | 37g |
| M2528-MPW3 | 2/3″ | 25mm | 0.2m – Inf. | 0.77% (y=5.5) | 42g |
| M3528-MPW3 | 2/3″ | 35mm | 0.25m – Inf. | 0.06% (y=5.5) | 48g |
| M5028-MPW3 | 2/3″ | 50mm | 0.3m – Inf. | 0.00% (y=5.5) | 65g |
| M7528-MPW3 | 2/3″ | 75mm | 0.4m – Inf. | 0.33% (y=5.5) | 102g |
