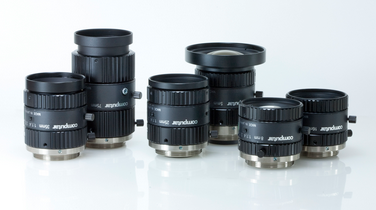

MP / MP2 Series 2/3″ / 1/2″ 1.5 Megapixel Lens (C Mount)
Megapixel Ultra-low Distortion Lens Series
The MP2 series lenses are engineered for maximum performance in close-up applications required in factory automation, robotics and image processing areas.
This Factory Automation (FA) lens provides high-performance optics with a variety of common focal lengths for maximum application flexibility. Ideal for Industrial Machine Vision and Intelligent Traffic Systems.
Features & Benefits:
- 1/2″ Format for 5mm lens / 2/3″ for other sizes
- F1.4 – F2.8 depending on the lens
- 1.5 Megapixel
- C Mount
- Ultra-low distortion
- Higher relative illumination rate
- Captures full resolution of megapixel cameras
- Assured excellent light intensity even in peripheral areas
- High contrast and sharp picture in all areas of the screen
- Compact design
- Locking set screws for focus and iris
- 5, 8, 12, 16, 25, 35, 50 and 75mm focal lengths available
Specification & Models:
| Model Name | Sensor Size | Focal Length | F-Number | Working Distance | Distortion | Weight |
|---|---|---|---|---|---|---|
| H0514-MP2 | 1/2″ | 5mm | 1.4 | 0.1m – Inf. | -0.48%(y=4.0) | 102g |
| M0814-MP2 | 2/3″ | 8mm | 1.4 | 0.1m – Inf. | -0.1%(y=5.5) | 62.6g |
| M1214-MP2 | 2/3″ | 12mm | 1.4 | 0.15m – Inf. | -0.1%(y=5.5) | 61.9g |
| M1614-MP2 | 2/3″ | 16mm | 1.4 | 0.3m – Inf. | -0.1%(y=5.5) | 60g |
| M2514-MP2 | 2/3″ | 25mm | 1.4 | 0.3m – Inf. | -0.3%(y=5.5) | 71.2g |
| M3514-MP | 2/3″ | 35mm | 1.4 | 0.3m – Inf. | -0.8%(y=5.5) | 87g |
| M5018-MP2 | 2/3″ | 50mm | 1.8 | 0.5m – Inf. | -0.3%(y=5.5) | 85g |
| M7528-MP | 2/3″ | 75mm | 2.8 | 0.3m – Inf. | -0.4%(y=5.5) | 113g |
