Circular Grating | Flat Axicon

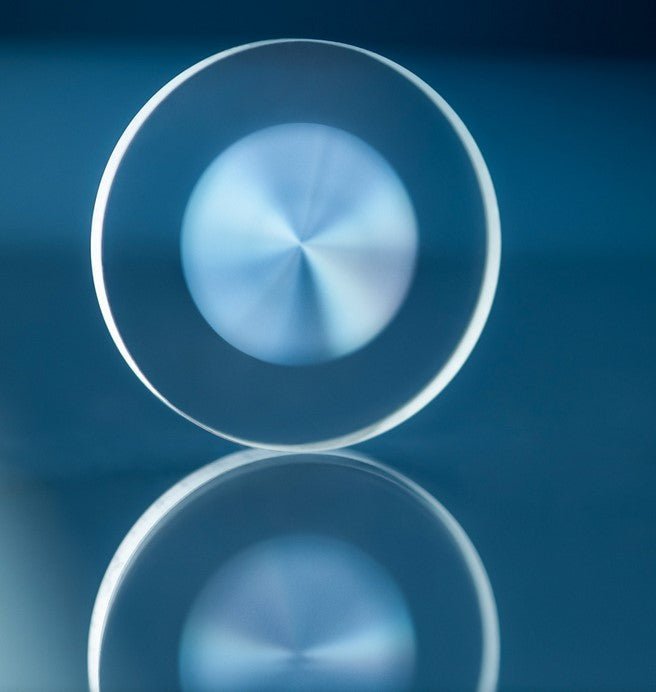

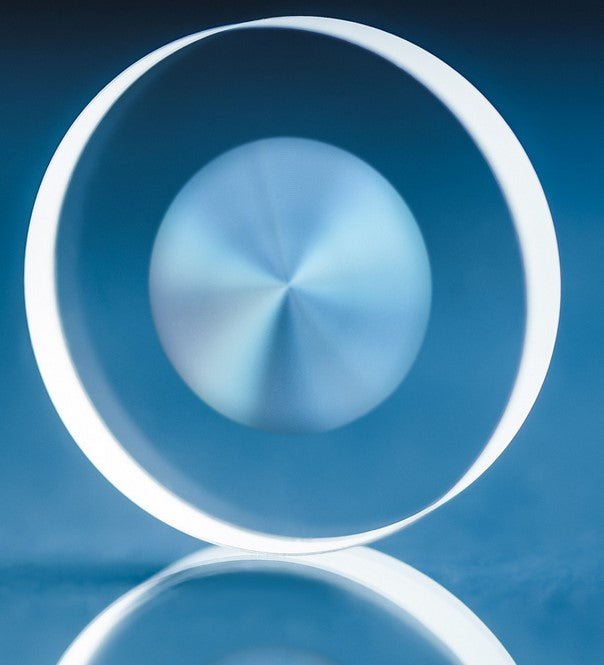

Circular grating | flat axicon is leading for its high damage threshold, comparing to alternative devices. It has laser irradiation resistance similar to uncoated fused silica substrates.
The structure of the element is unique due to formation birefringent nanograting’s inside a bulk of fused silica glass, sensitive to the incident polarization.
Circular grating can generate both – positive and negative Bessel-Gauss zones, separately with LHCP and RHCP polarizations. Also, positive and negative zones simultaneously with linear polarization. The working regime depends only on incident polarization.
Features & Benefits:
- Material: UVFS, IRFS
- Wavelength range: 330nm to 2000 nm
- Min Apex angle: 176-179.9° @1030 nm
- Diffraction efficiency: up to 95%
- Element size: up to 15 mm
- Coating (optional): AR/AR coating
- Uncertainty of diameter of cone tip – ~20 µm
- LIDT | High damage threshold: 63 J/cm2 @1064 mn, 10ns; 2 J/cm2 @1030 nm, 212fs
- Transmission (no AR coating): 85% @343 nm, 92% @515 nm, 94% @1030 n
Applications:
- Micromachining
- Ultra-high aspect ratio micro holes drilling
- High 90% efficiency Bragg gratings
- Cutting of transparent materials
