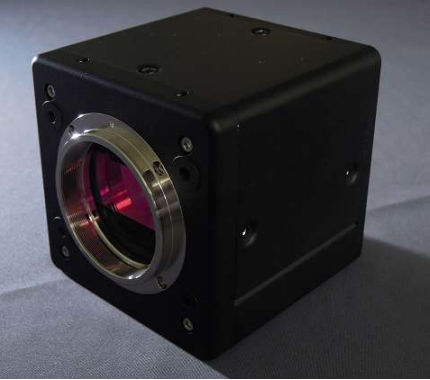

BVC6100LM – 4CMOS 4K RGB/NIR Line Scan Camera

BVC6100LM is 4CMOS prism spectroscopic color line scan camera using newly developed prism to cover both RGB and NIR wavelength with M52 mount.

New designed prism for 4 line scan sensors
4 different wavelengths(400nm～1680nm) of filters bonding as customisation is possible.
CMOS sensors — 4096pixels, 7μm square pixel x 4
Compact size, Light weight
Pixel clock 80MHz, Line rate 18034Line/s
Variable shutter speed setting for Electric shutter (9.52µs～100ms by 1µs step)
Image out 4K and 2K(bining mode), Camera Link medium configuration 8bit x 4
Gain level setting -3dB～+12dB
Internal/ External trigger
Various compensation functions are installed (see back page)
3 operation modes (No Shutter mode, Shutter select mode, Pulse width trigger)
Camera Link, Baud rate 115200bps (GigE: development scheduled)
Field update (Remote update) function
Original camera control tool is bundled

Specifications:

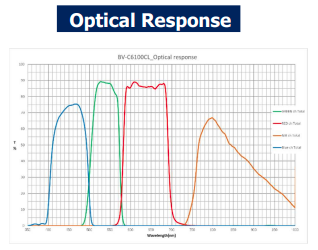

Optical Structure: 4 sensors prism (400nm~1680nm)
Image Sensor: CMOS line sensor 4096 pixels, 7μm square x 4
Effective Capture Length: 28.672mm
Synchronization: Internal/External trigger
Pixel Clock Frequency: 80MHz
Line Rate/Line Frequency: 55.45μs (Internal trigger) / 18.03KHz (Internal trigger) Full resolution
Image Output: Full resolution 4K mode, 2 pixels binning 2K mode selectable, Camera Link, Medium configuration, 8bit x4
Standard Illuminance: 3500Lx (corresponds to 7800K)
S/N: More than 48dB (by 8 bit gradation)
Line Rate (Variable): 55.45μs ～ 100ms (by 12.5ns step)
Electric Shutter (Variable): 9.52μs ～ 100ms (by 1μs step)
Gain: R/G/B/NIR -3dB ～ +12dB, 0LSB ～ 31LSB
Black Level: Camera Link LVDS (CC1)
Trigger Input:
- No Shutter mode (Internal/External trigger)
- Shutter Select mode (Internal/External trigger)
- Pulse Width Control (External trigger)
Compensation: PRNU, DSNU, Flat/Color shading compensation, Lens aberration compensation (ON/OFF)
Communication Interface: Camera Link EIA644, 115200bps
Lens Mount: M52 / (Option) F mount
Input Voltage/Current Consumption: DC 12V～24V, Std- TBD / Max- TBD
Operation Temperature/Humidity: -5°C ～ +45°C / 20%～80% (No condensing)
Storage Temperature/Humidity: -25°C ～ +60°C / 20%～80% (No condensing)

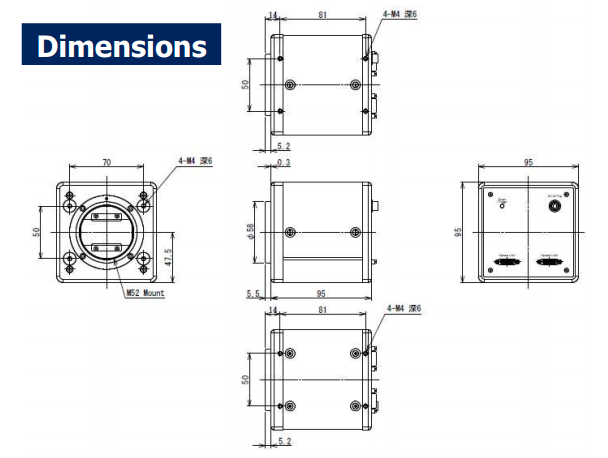

Dimensions: (W x H x D) 95 x 95 x 95 mm
Weight: 840g
