AZURE-NV7838UV

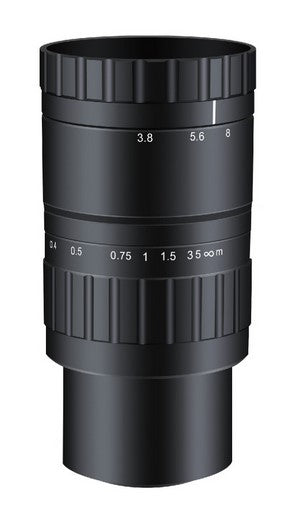

AZURE Photonics AZURE-NV7838UV 1″ 78mm F3.8 Manual Iris C-Mount Lens, Ultraviolet Type (200-1000nm)
Specifications
- Image Format: 1″
- Resolution: 100 lp/mm
- Focal Length: 78 mm
- Back Focus: 65.02 mm
- F/ No: 3.8
- Iris Type: Manual
- Distortion: < -0.05%
- Lens Effective Diameter (Front): Φ23.67 mm
- Lens Effective Diameter (Back): Φ18.09 mm
- Relative Illuminate: 87.64%
- TTL: 131.74 mm
- Design Wavelength: 200-300 nm
- Mount: C
- Suitable Distance: 0.4 m~∞ m
- Optimum Working Distance: 440 mm-1500 mm
- Coating: 200-1000 nm

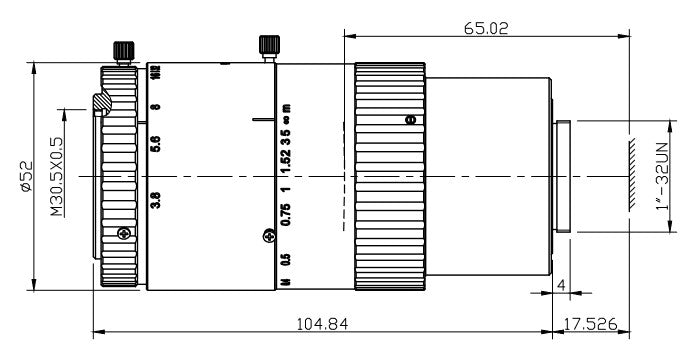

- Dimension: Φ52 x 104.84 mm
- Operating Temperature: -20~+65°C
- Lens Construction: 6-6
- CRA: 5.07°
- Filter Thread: M30.5 x 0.5
