AZURE-7538UV

2/3&#8243; Format: 8.36° × 5.06° × 6.7°
1/2&#8243; Format: 6.10° × 3.67° × 4.89°
1/3&#8243; Format: 4.58° × 2.75° × 3.67°
1/4&#8243; Format: 3.05° × 1.83° × 2.44°

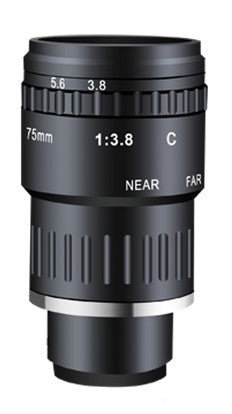

AZURE Photonics AZURE-7538UV 2/3″ 75mm F3.8 Manual Iris C-Mount Lens, Ultraviolet Type (200-1000nm)

Specifications

Resolution: 100 lp/mm (2MP)
Format: 2/3”
Mount: C
Focal Length: 75 mm
F/No: F3.8~F32
Back Focus: 47.32 mm
Iris Type: Manual
Angle of View:
- 2/3″ Format: 8.36° × 5.06° × 6.7°
- 1/2″ Format: 6.10° × 3.67° × 4.89°
- 1/3″ Format: 4.58° × 2.75° × 3.67°
- 1/4″ Format: 3.05° × 1.83° × 2.44°
Distortion: < -0.1%
Working Distance: 0.5 m~∞
Design Wavelength: 200~1000 nm
Filter Thread: M34 × 0.5
Dimension: ￠40.2 × 70.38 mm
Weight: 114 g
