ARTCAM-2020UV-USB3
The ARTCAM-2020UV Series is camera adopting a CMOS sensor equipped sensitivity of ultraviolet. The area of visible light is hardly recognized based on its combination with UV lighting equipment and it easily reflects blur, stain and scratch on the surface of objects.

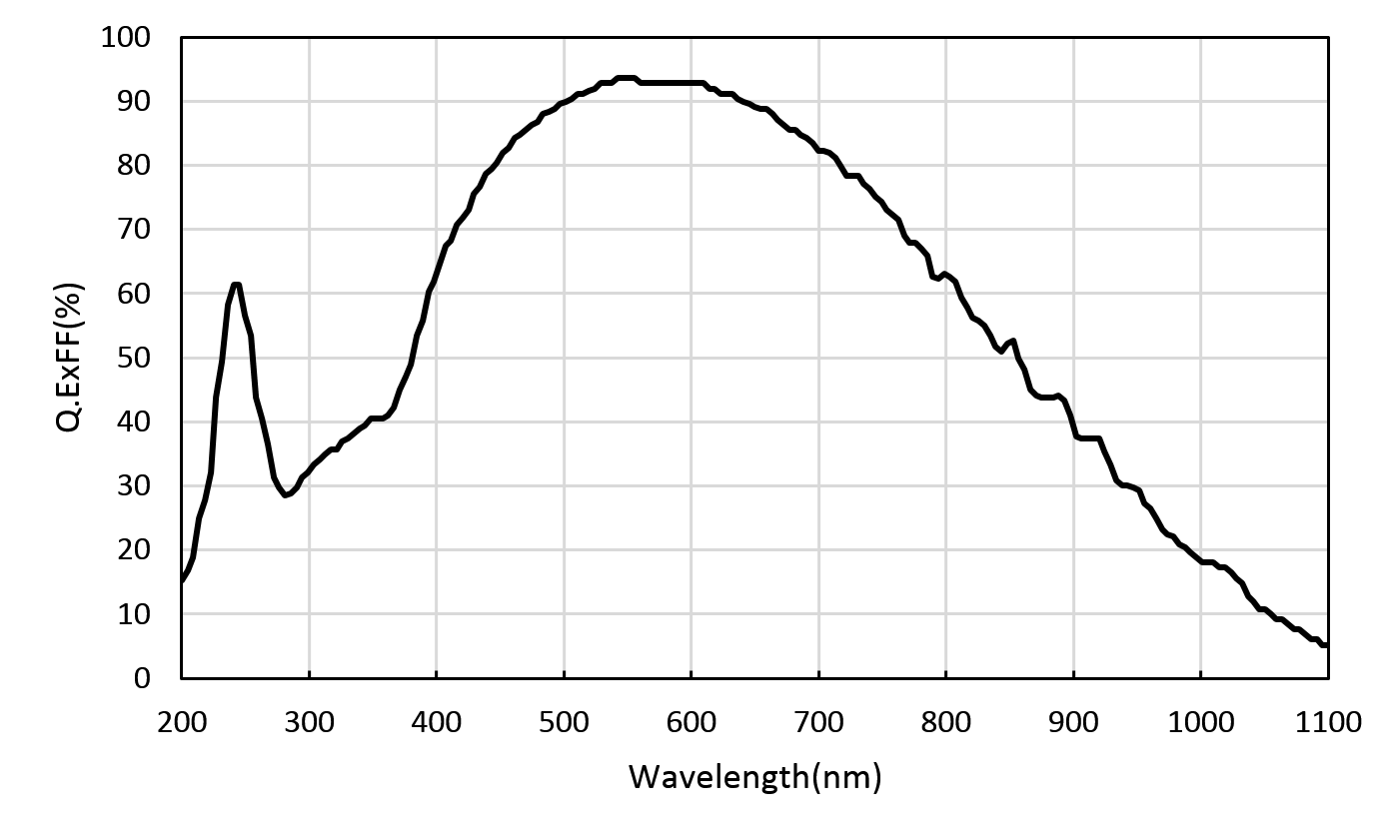

Spectral Sensitivity Characteristics:
- Range: 200 – 1100 nm
Size:
- Dimensions: 71.6 (W) x 61.5 (H) x 51.5 (D) mm
- Weight: 240 g
Accessories:
- Standard viewer software
- Device driver
- AC adapter
Specifications:
- Lens: C mount (Extra)
- Power Supply: DC 12V
Options:
- (CL) CameraLink capture board
- CameraLink cable
- CameraLink SDK (Software Development Kit)
- C mount Lens
- (USB3) USB cable
- SDK (Software Development Kit)
- C mount Lens
Camera Specifications:
- Model: ARTCAM-2020UV-CL / ARTCAM-2020UV-USB3
- Interface: CameraLink / USB 3.0
- Sensor: CMOS
- Resolution (pixels): 4M
- Sensor Manufacturer: Gpixel
- Spectral Sensitivity (nm): 200-1100
- Shutter Type: Rolling
- Optical Format: 1.2”
- Active Pixels: 2048 x 2048
- Active Imager Size: 13.3 x 13.3 mm
- Pixel Size: 6.5 x 6.5 µm
- Frame Rate: 23 FPS / 43 FPS
- Shutter Speed (sec): 11.2µ~1 / 56µ~1
