ARTCAM-2020UV-CL
The ARTCAM-2020UV Series is camera adopting a CMOS sensor equipped sensitivity of ultraviolet. The area of visible light is hardly recognized based on its combination with UV lighting equipment and it easily reflects blur, stain and scratch on the surface of objects.

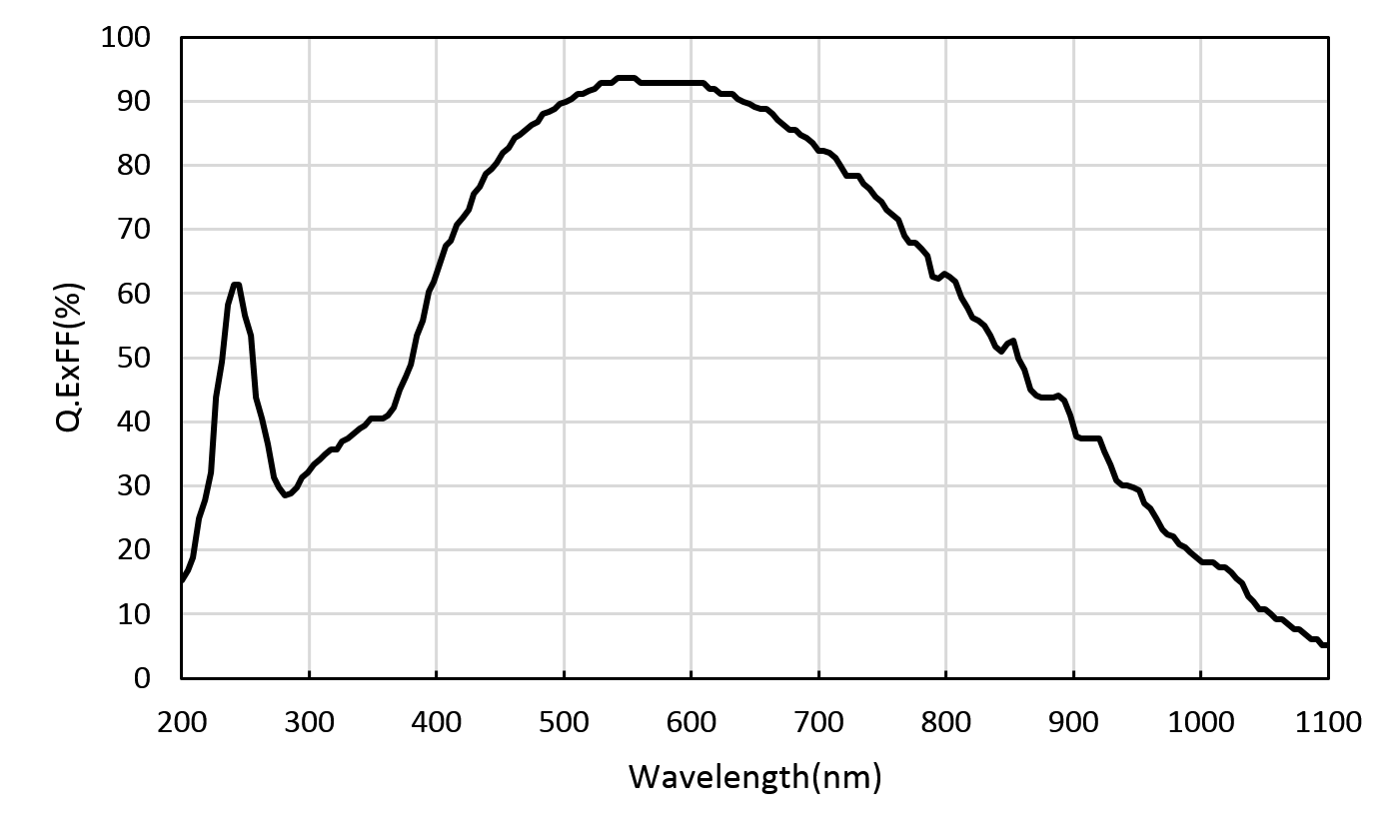

Spectral Sensitivity Characteristics:
- Range: 200 – 1100 nm
Size:
- Dimensions: 71.6 (W) x 61.5 (H) x 51.5 (D) mm
- Weight: 240 g
Accessories:
- Standard viewer software
- Device driver
- AC adapter
Specifications:
- Lens: C mount (Extra)
- Power Supply: DC 12V
Options:
- (CL) CameraLink capture board
- CameraLink cable
- CameraLink SDK (Software Development Kit)
- C mount Lens
- (USB3) USB cable
- SDK (Software Development Kit)
- C mount Lens
Model:
- ARTCAM-2020UV-CL
- ARTCAM-2020UV-USB3
Interface:
- CameraLink
- USB 3.0
Sensor:
- Type: CMOS
Resolution (pixels):
- 4M
Sensor Manufacturer:
- Gpixel
Spectral Sensitivity (nm):
- 200 – 1100
Shutter Type:
- Rolling
Optical Format:
- 1.2”
Active Pixels:
- 2048 x 2048
Active Imager Size:
- 13.3 x 13.3 mm
Pixel Size:
- 6.5 x 6.5 µm
Frame Rate:
- 23 FPS
- 43 FPS
Shutter Speed (sec):
- 11.2 µs ~ 1
- 56 µs ~ 1
