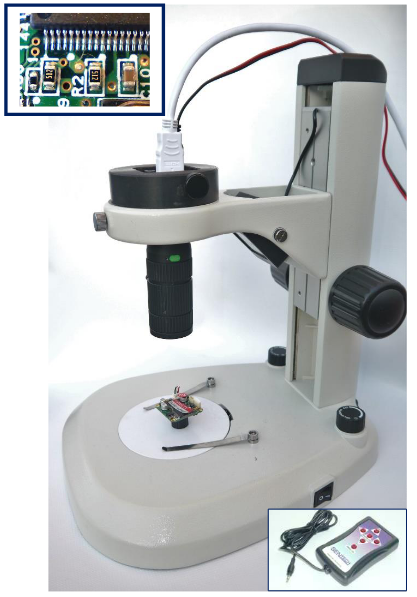

ADVISION VIS-HD3X
HD Video Inspection System
Full HD 2MP Video Camera / Lens / Stand / Lights / 23.6” HD Monitor
Note: HDMI – Computer Not Required !
Features & Benefits:
- Full HD HDMI–DVI Output 2MP Camera
- Plugs directly into HDMI Video Monitor
- 1 or 2 H & V + Circle Overlay Lines
- Macro Zoom Lens, 5~18mm HFoV range
- Adjustable Height Stand
- Integral Top & Bottom White LED Lights
- Individual LED Lamp Intensity Controls
Specification & Models:
- Camera Sensor: Full HD SONY CMOS IMX136 Sensor, 1/2.8″ format, 1920×1080 Pixels 16:9 format
- Video Output: HDMI–DVI 1080P, standard full size ‘A’ Port
- Electronic Iris: Auto Electronic CCD Iris / Manual Shutter range 1/50 – 1/100,000 Second*
- Gain: Automatic / Manual Gain Control*
- White Balance: Auto/ Manual (using rear push button or Control Pad Jig*)
- Brightness: Auto/ Manual Adjustment*
- Colour: R/G/B, Monochrome and Saturation adjustments*
- Mirror Flip: Vertical & Horizontal Mirroring*
- User Interface: Graphic On-Screen Display – via Menu Control using supplied Control Pad Jig*
- Graphics Overlay: Internal Line Generator, 1 or 2 H&V, plus Circle Overlay Lines* (plugs into 3.5mm jack)
- Operating Voltage: 12VDC in (170mA) – on standard 2.1mm DC Jack Socket
- Lens: 3x Macro Manual Zoom Lens, f4.5, 80~100mm Working Distance, 5~18mm HFoV range
Monitor 23.6″ LED 16:9 Full HD HDMI Monitor, c/w, 12VDC PSU, Stand & Remote Control - System Weight: 4kgs Camera, Lens & Stand / 4.7 kgs Monitor
- Stand Dimensions: H: 342mm x W: 242mm x D: 290mm
- Monitor Dimensions: H: 400mm on Stand / 340mm Panel x W: 856mm x D: 52mm Panel / 150mm Stand Base
- Accessories: c/w UK Power Supply, 2m HDMI Cable, IEC UK Mains Cords, Camera Control Pad Jig
